The active group's bit-order can be customized. The Least Significant Bit (LSB) is displayed on the right. The Most Significant Bit (MSB) is displayed on the left.

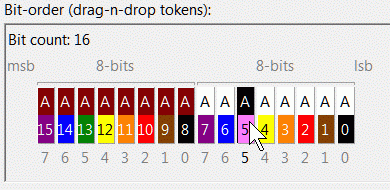

First, click and hold the left mouse button on a channel token...

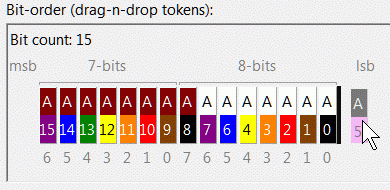

Then move the mouse to drag the channel to a new location in the group...

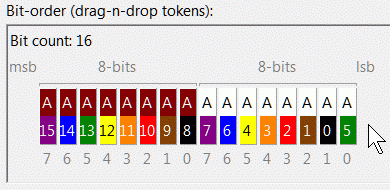

Finally, release the mouse to drop the token in its new location...

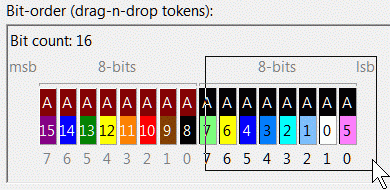

Multiple channels can also be selected and moved. First, create a selection rectangle by starting the left mouse button inside the bit-order area but off the channels tokens...

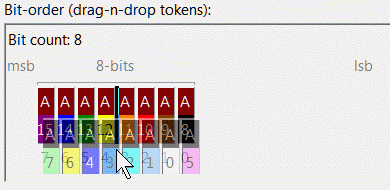

Once the desired channels are selected, drag the tokens to a new location in the group...
Finally, release the left mouse button to drop the tokens in their new order...
After channel tokens are selected in the bit-order area, the Delete key removes those channels from the group. The Escape key unselects all channels. Clicking outside the bit-order area also unselects all channels.
