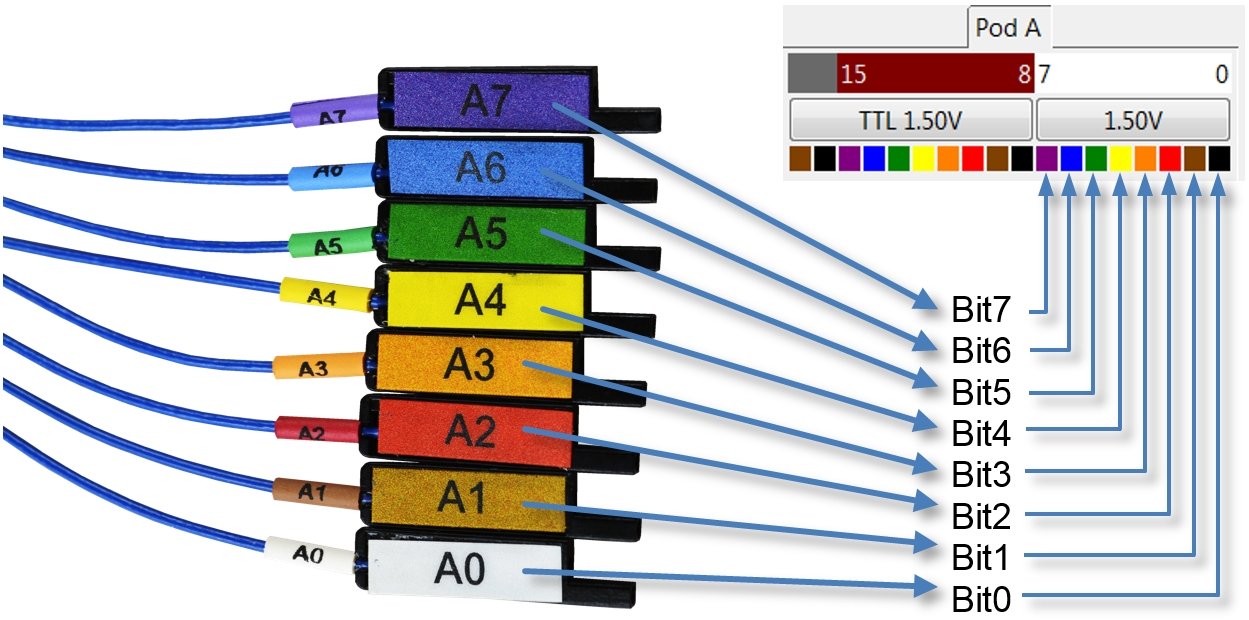

Each General-Purpose Leadset tip associates a color for each channel number.
|
|
Black/White is the Bit-0 in each 8-bit pod, Brown is Bit-1, Red is the Bit-2, and so forth.
|
| |
|
The Leadset tip colors match the swatches in the Channels tab...
|
| |
|
| |
|

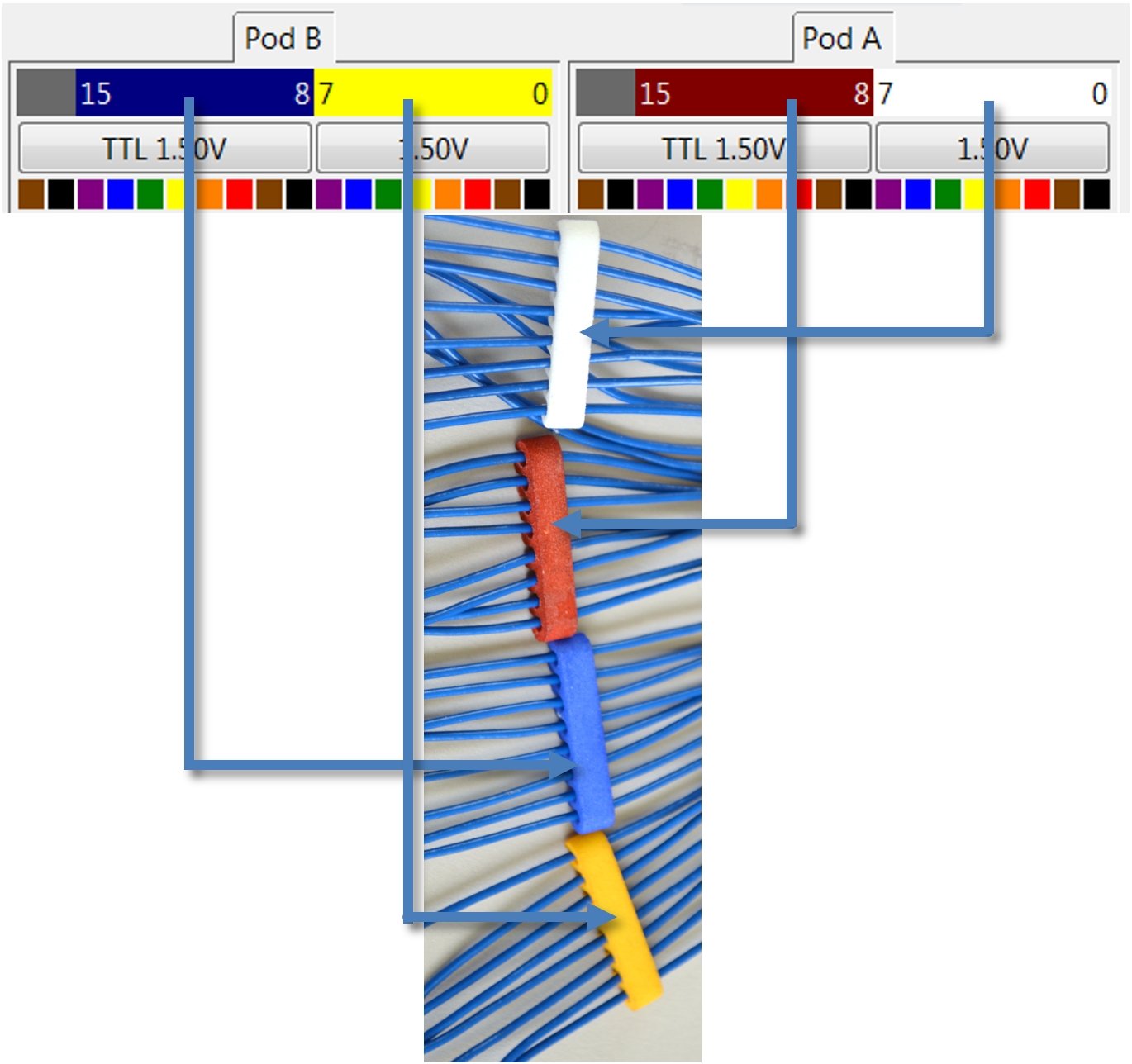

Likewise, each plastic wire-guide has a unique color for the lower and upper byte inside each pod.
|
| |
|
White is Pod A's low byte, red is Pod A's high byte, yellow is Pod B's low byte, and blue is Pod B's high byte.
|
| |
|
The wire-guide colors also match the swatches in the Channels tab...
|
| |
|
| |
|
This General-Purpose Leadset and software color-coding allows specific channels to be quickly found without looking for the labels.
|
| |
|
Remembering the wire-guide and pod color is not needed. Simply glance at the Channel Edit view to see any channel's color associations.
|
| |
|
For example, channel A04 is the yellow channel in the white wire-guide.
|
| |
|
Grab the pod with the White wire-guide, then grab the Yellow channel.
|
| |
|
