The Pods, Mictor, and PinPoint Display types use the Group Tabs Area on the left side of the Channels Edit view. The Group Tabs Area is hidden when the Spreadsheet Display type is active.
|
| |
|

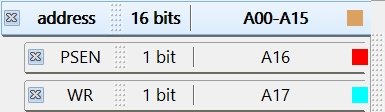

Select the active channel group by clicking on a tab...
|
| |
 |
| |
|
Each tab displays the group name, the bit-count, the channel definition string, and the on the right.
|
| |
|
The group properties are edited in the main area of the Channel Edit view.
|
| |
|
|
| |
|
The delete button on the far left of each tab removes the group from the project. All references to the group in the TriggerForms, WaveForm, Numeric, Analysis Tools, etc. are deleted.
|
| |
|
|
| |
|
The group tabs can be arranged using drag-n-drop methods...
|
| |
|

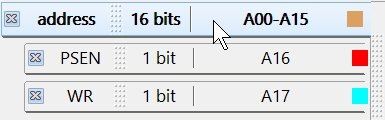

Click and hold the left mouse button over a group tab until "lifted".
|
| |
|
|

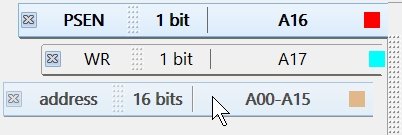

Once the tab is "lifted", move the mouse over the new location.
|
| |
|
|

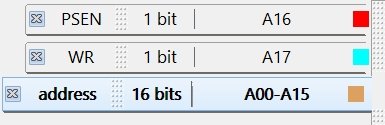

Finally, release the mouse button to drop the tab.
|
|
| |
|
|
| |
|

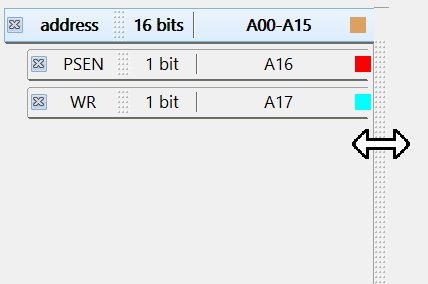

The tab area width can be resized if needed. Move the mouse over the right edge of the tab area and the cursor changes to the resize icon...
|
| |
|
| |
|
Click and drag the tab area width using the left mouse button. To use the default tab area width, click the right mouse button while the resize cursor is visible.
|
| |
|
|
| |
|
The tab's name section can also be resized to accommodate very long group names. Move the mouse over the right edge of the group name section. The mouse changes to the resize cursor...
|
| |
|
| |
|
Click and drag the name area wider using the left mouse button. Click the right mouse button while the resize cursor is visible to use the default width for the name area.
|
| |
|
