Numeric Options: Export

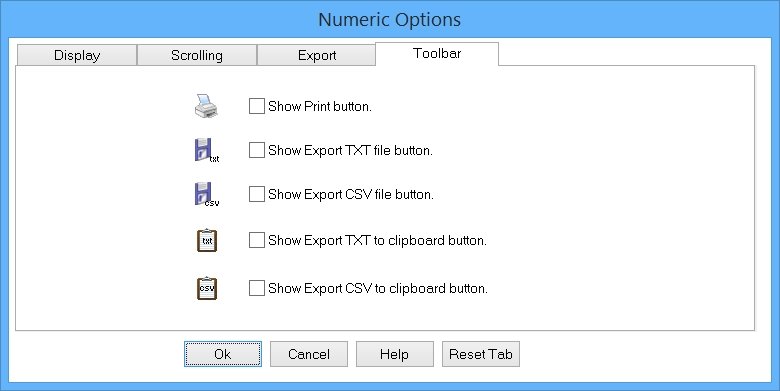

First, enable the "Export" toolbar buttons you need with the "Toolbar" tab.

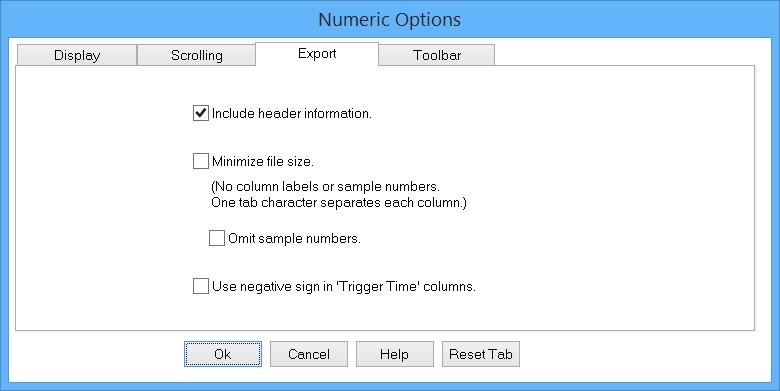

Second, customize the export behavior with the "Export" tab.

Include header information.

When checked, the Setup Area labels are exported as the first line.

Minimize file size.

When checked, the smallest number of characters are included in the export file. No Setup Area labels or sample numbers are included. One tab character separates each column in the TXT file exports.

Omit sample numbers.

When checked, no sample numbers are included in the exported file.

Use negative sign in "Trigger Time" columns.

When checked, samples "before" the Trigger marker are output as negative time values. Samples "after" the Trigger marker are positive time. When unchecked, all time values are exported as positive time.
