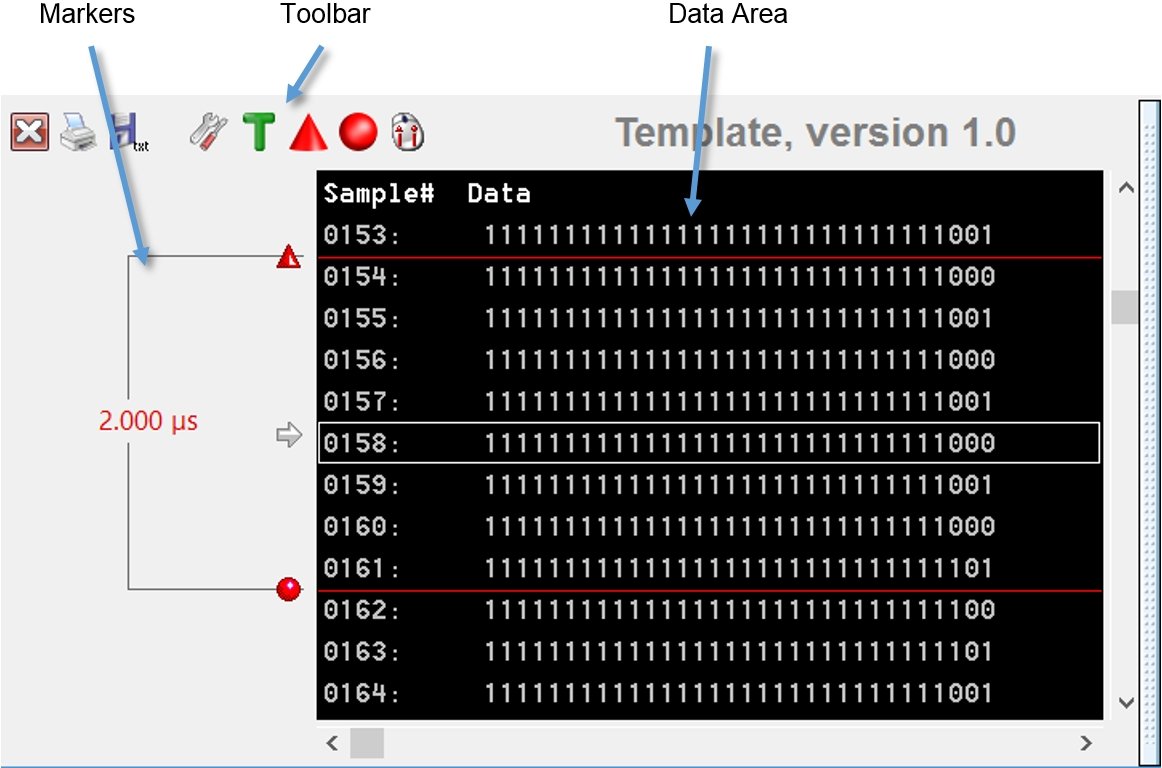

The VIEW Tab  Toolbar button adds a new PlugIns pane.
|
| |
|
| |
|
PlugIns allow custom text display panes to be added to the logic analyzer software.
|
| |
|
PlugIns are created with the Plugin Development Kit (PDK) available free on the NCI web site.
|
| |
|
Close Button
|
| |
Click the  button in the upper-left corner to close the pane.
|
| |
|
All setup values are saved when the pane is closed. The setup values are automatically opened when a pane is restored. So unused views can be temporarily closed until needed. Open and closed views are saved in the project files. A pane can be closed when a project is saved, and then restored after the project is opened later.
|
| |
|
Fewer open views reduces the used system memory and increases the speed of the software. So it's best practice to close unused views until they're needed.
|
| |
|
ToolBar
|
| |
|
Data Area
|
| |
|
ScrollBar
|
| |
|
Marker Area
|
| |
|
Options
|
| |
|
