Insert the General-Purpose Leadset probe into the A/B and C/D connectors on the front panel. Secure each probe with the captured screw...
Channels

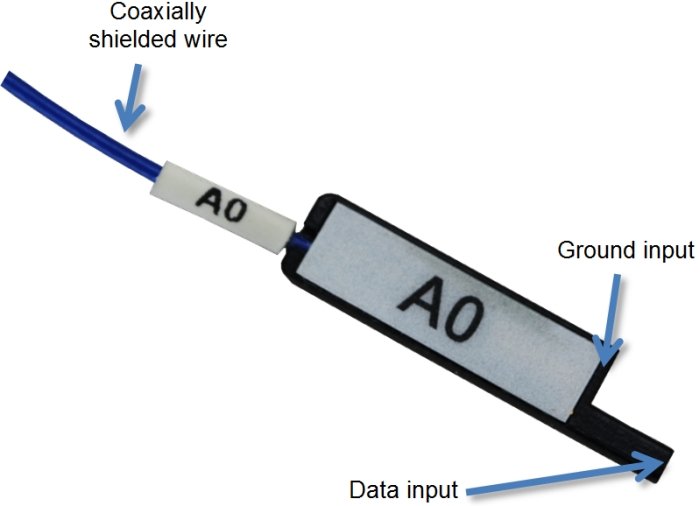

Each channel has a "data" and "ground" input.
Connecting each ground input shields the data signal...
Disconnect

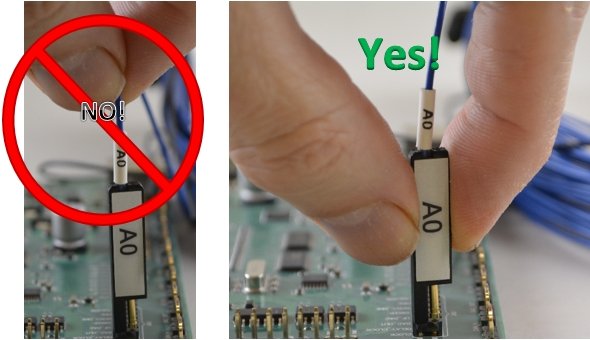

DO NOT pull the wires to disconnect channels!
Grab the lead tip body to disconnect each channel...
Connect
The channels are connected to your signals using various methods...
Ground Options

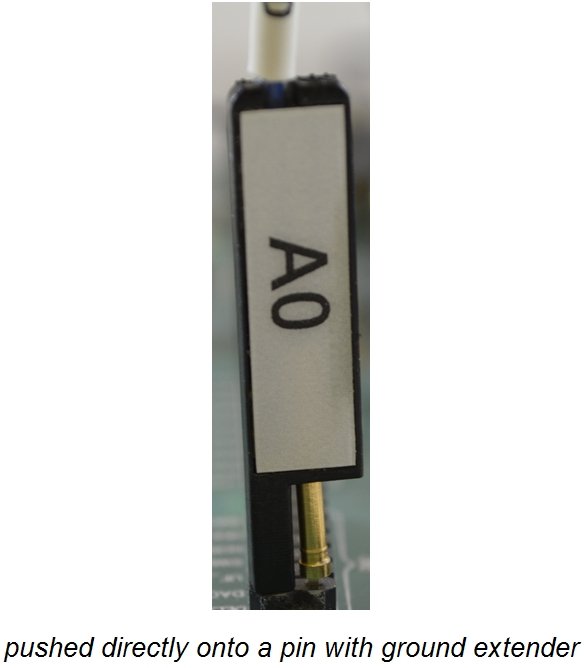

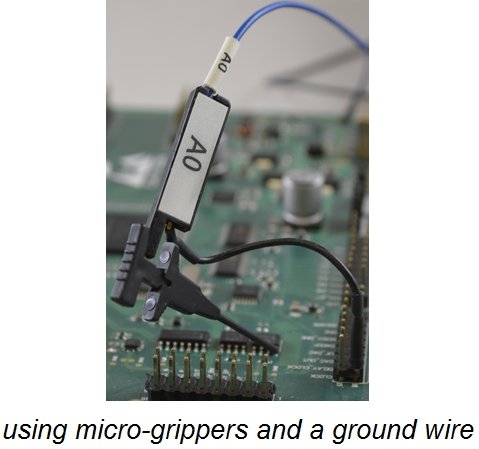

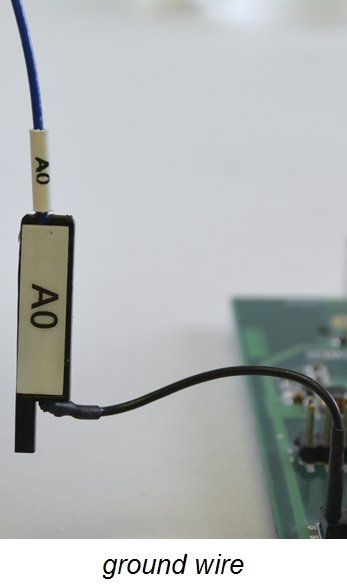

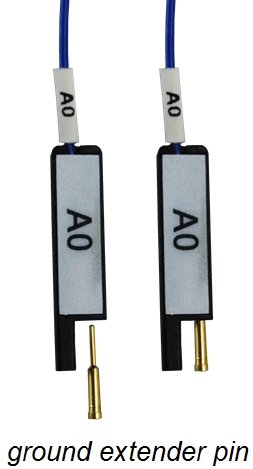

Each channel can be individually grounded via two adapters...

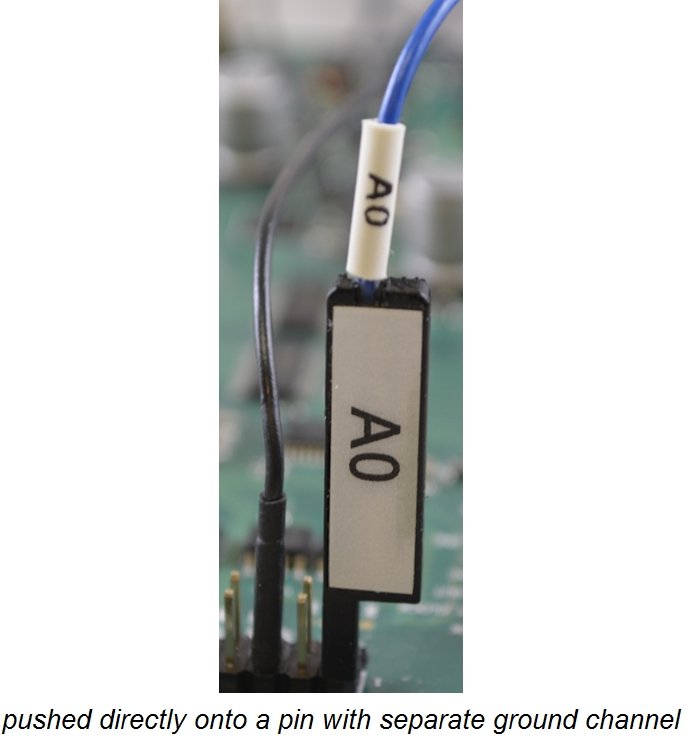

Finally, the General-Purpose Leadset provides separate ground channels.
At least one ground channel should be connected to the test circuit's ground...
Connect at least one ground channel (black wire) to the test circuit's ground. More ground connections are better. If signal quality issues exist, also connect every 4th channel's individual ground.
