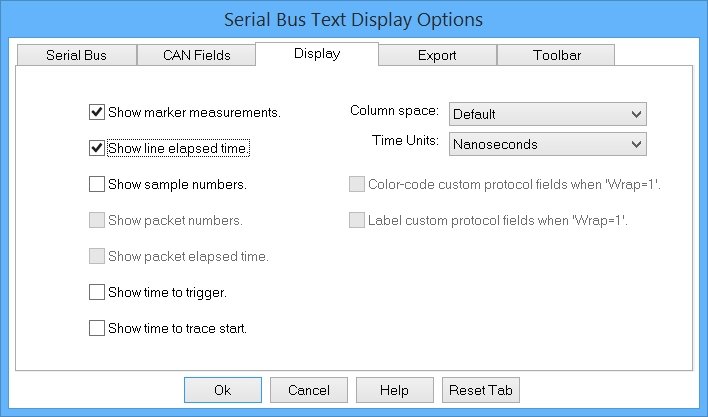

Serial Bus Text Options: Display

Time Units

Select the time units for the Statistics Area.

Time Units: Automatic

The Statistics Area uses the best units for each time value. (This is the default).

Time Units: (ps, ns, us, ms, etc.)

The Statistics Area forces the selected units.

Show marker measurements.

When checked, the time measured between each marker-pair is displayed in the Marker Area. (Checked by default).

Show line elapsed time.

When checked, the elapsed time is displayed for each text line.

The line time begins at the first converted value's start.

The line time end at the last converted value's end.

Show sample number.

When checked, the raw sample number is displayed for each text line.

The sample number is the raw trace index for the converted serial bus data at the line start.

Show packet numbers.

When checked, the packet numbers are displayed.

This option is not available for serial bus types that do not have packets.

Show packet elapsed time.

When checked, the elapsed time for each packet is displayed. The time values is only displayed on the line where a packet begins.

The packet time begins at the start of each packet's first significant value. This does not include incidental tokens like "start" bits.

The packet time ends at the end of each packet's last significant value. This does not include incidental tokens like "acknowledge" or "stop" bits.

This option is not available for serial bus types that do not have packets.

Show time to trigger.

When checked, the elapsed time from each line start to the Trigger maker is displayed on each text line.

Show time to trace start.

When checked, the elapsed time from each line start to the trace data start is displayed on each text line.
