Serial Bus Text Options: Export

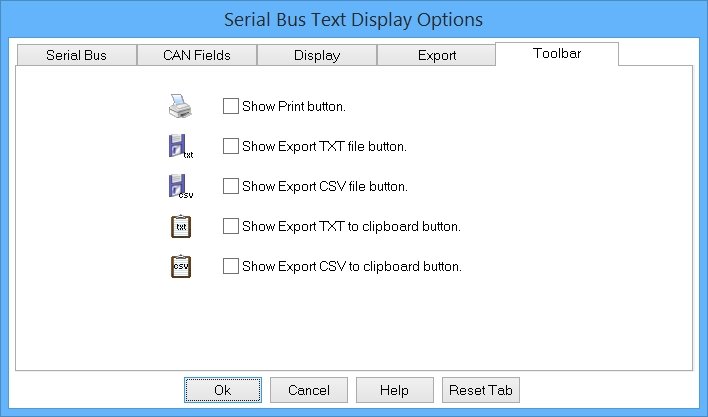

First, enable the "Export" toolbar buttons you need with the "Toolbar" tab.

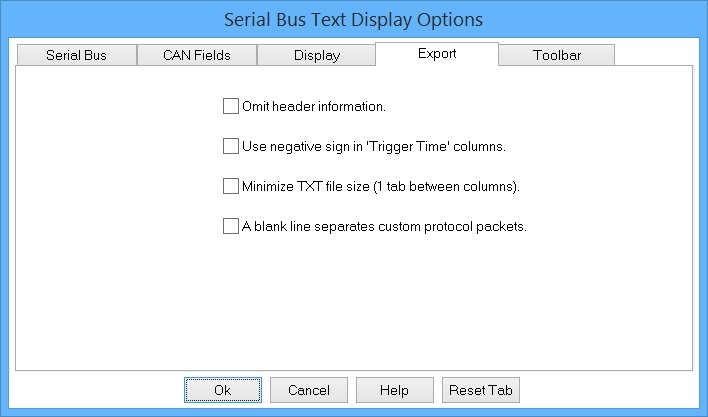

Second, customize the export behavior with the "Export" tab.

Omit header information.

When checked, the column labels are excluded from the file.

Omit sample numbers.

When checked, no sample numbers are included in the exported file.

Minimize TXT file size.

When checked, the smallest number of characters are included in the export file. No labels or sample numbers are included. One tab character separates each column in the TXT file exports.

Use negative sign in "Trigger Time" columns.

When checked, samples "before" the Trigger marker are output as negative time values. Samples "after" the Trigger marker are positive time. When unchecked, all time values are exported as positive time.
