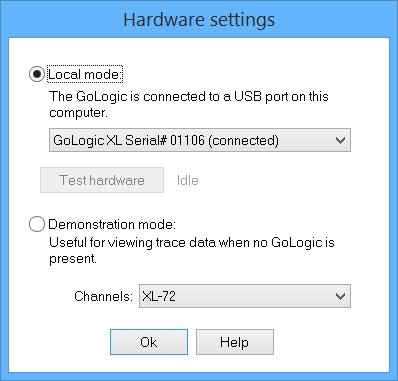

The  Setup Toolbar button displays the hardware settings dialog box...
|
| |
 |
| |
|
Local Mode
|
| |
|
The GoLogic7 software supports local hardware and demonstration modes.
|
| |
|
|
The power and USB cables must be connected before the Windows can detect the device.
|
|
| |
|
Once the software detects the device, you can run diagnostics to determine if the hardware is behaving properly...
|
| |
|
| |
|
Errors usually indicates a problem with the USB connection to the computer. However, errors may indicate the logic analyzer needs repair.
|
| |
|
Demonstration Mode
|
| |
|
Demonstration Mode tells the software to ignore the hardware.
|
| |
|
Check demo mode to view project files without a logic analyzer connected and avoid error messages.
|
| |
|
The Channels option allows demo mode to emulate different models...
|
| |
|
| |
|
Demo mode simulates the normal behavior of a device when the "Go" button is clicked.
|
| |
|
