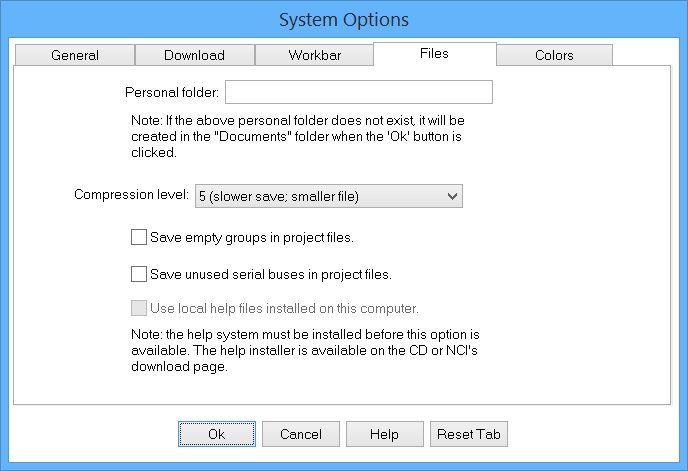

The GoLogic7 software installer creates the "My Documents\GoLogic7" folder. This options allows you to change the folder name. However, the folder is always located in the "My Documents" folder.
|
| |
|
|
| |
|
Defines how much compression is used when saving project files. Less compression requires less time saving projects, but produces much larger files. More compression takes longer to save projects, but produces very small files.
|
| |
|
|
| |
|
When checked, empty channel groups are saved in project files. This option is normally unchecked. Deleting empty groups makes the software run faster.
|
| |
|
|
| |
|
When checked, unused serial buses are not saved in project files. This option is normally unchecked. Deleting unused buses makes the software run faster.
|
| |
|
|
| |
|
When this option is checked, the software will first try to use the help files installed locally rather than accessing the NCI web site. If the local files are missing, the software tries to get the help files from NCI's web site. This option is only available is the local help files are installed. The help install is provided on the GoLogic7 installer drive, plus on the downloads page on NCI's web site. However, we recommend using the remote help files if possible because these files are kept up to date with each version release.
|
| |
|
