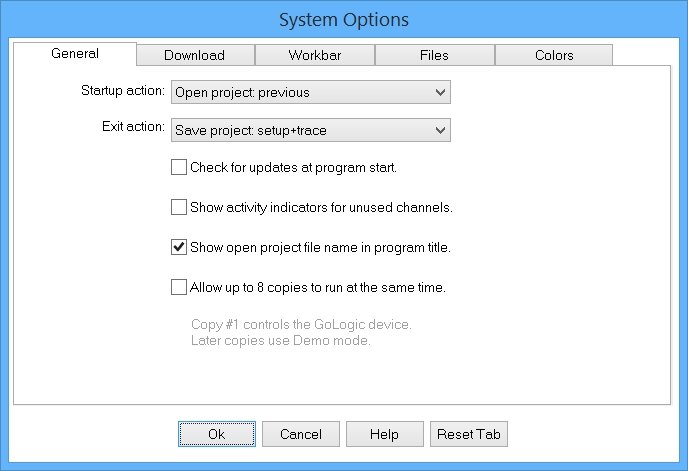

System Options: General Tab

Startup Action

Startup Action: Open Previous Project

The project is saved when the software exits and is automatically opened at startup.

Startup Action: Ask for Project Name

The "Open Project..." dialog is displayed when the software starts.

Exit Action

Exit Action: Save Project (Setup Only)

The active project is saved with only the setup information. The trace data is not saved in the project. Omitting the trace data reduces the time required to save and load the default project file. The software exits and starts faster when very large sample depths are captured.

Exit Action: Save Project (Setup + Trace)

The active project is saved with both setup and trace data.

Exit Action: Ask for Filename

The active project is saved with setup information and you are prompted to save the open trace data in the project. Omitting the trace data reduces the time required to save and load the default project file. The software exits and starts faster when very large sample depths are captured.

Exit Action: Do Nothing

No project file is saved on exit. The previous project remains unchanged from the prior exit. The previous project may still be loaded at startup depending on the "Startup action" above.

Check For Updates At Program Start.

When checked, the software checks the NCI web site for program updates at program startup. A notice is displayed at startup if newer software is available to download. Visit the NCI web site to download and install new software updates when desired.

Show Activity Indicators For Unused Channels.

When checked, the activity indicators are shown for channels not defined in a channel group or serial bus.

Show Open Project File Name In Program Title.

When checked, the active project name is included in the program title.

Allow Up To 8 Program Copies To Run.

When checked, up to 8 program copies can run at the same time. Only the first copy can control the logic analyzer. All other copies run in demo mode. This feature should remain unchecked unless needed.
