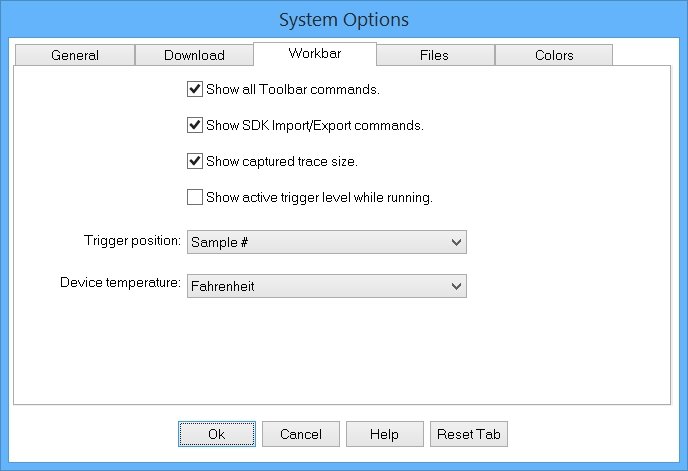

System Options: Workbar Tab

Show all ToolBar buttons.

Check this option to show all ToolBar buttons. Uncheck this option to hide seldom used ToolBar buttons.

Show SDK Import/Export buttons.

Check this option if you are developing custom software for the logic analyzer using the SDK. This option enables the File Tab's "Import SDK data" and "Export SDK setup" Toolbar buttons. These actions aid SDK programmers develop their applications. These SDK specific buttons are normally hidden to avoid confusing other customers.

Show captured trace size.

Show the captured trace size in the status area.

Show active trigger level while running.

Shows the active trigger level in the status area.

Show Trigger position: Percent

Shows the trigger percentage in the status area.

Show Trigger position: Sample #

Shows the trigger sample number in the status area.

Show Trigger position: Hide

Select this option to hide the trigger position in the status area.

Show Device Temperature: Hide

Hide the device temperature in the status area.

Show Trigger Temperature: Fahrenheit

Shows the device temperature in Fahrenheit in the status area.

Show Trigger Temperature: Celsius

Shows the device temperature in Celsius in the status area.
