The activity indicators display each channel's status.
|
| |
|
Each channel can be logic-high, logic-low, or changing.
|
| |
|
The activity indicators are updated several times each second.
|
| |
|
The channel activity help expose signals which have poor connections or invalid threshold levels...
|
| |
 |
| |
|
Channels which do not appear in any channel group are assumed to be unconnected and unused.
|
| |
|
By default, no activity indicators are displayed for unused channels.
|
| |
|

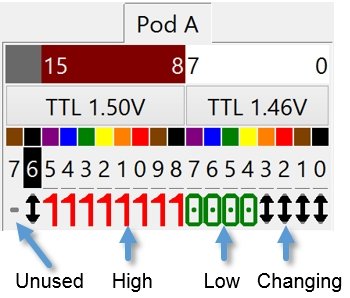

Unconnected channels display a "dash" placeholder for the activity indicator. For example, channel A17 (above) is unused and has a "dash" for the channel activity.
|
| |
|
However, the activity indicators for unused channels can be displayed using the Options Tab's System Options ToolBar button.
|
| |
|
