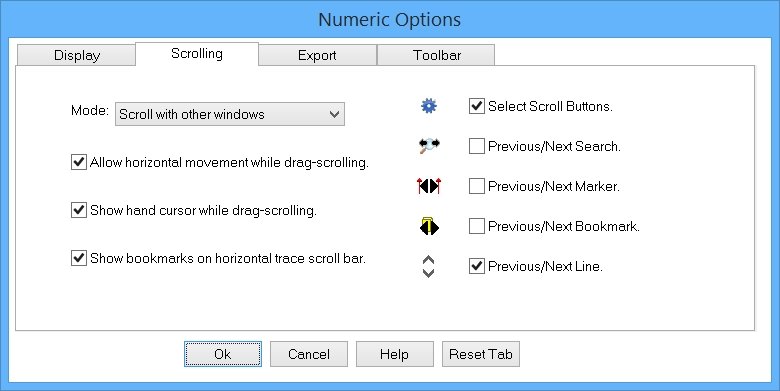

Numeric Options: Scrolling

Mode

Customize the scroll mode behavior...

Mode: Scroll with other views

Scrolls the waveform with other data views. (This is the default)

Mode: Scroll Independently

Scrolls the waveforms separately from the other data views.

Allow horizontal movement while drag-scrolling.

When checked, the Grab-n-Drag horizontal scrolling also scrolls the window vertically. No inertia effects apply to the vertical scrolling. When unchecked, no vertical scrolling occurs during Grab-n-Drag scrolling.

Show hand cursor while drag-scrolling.

When checked, a hand cursor is displayed when the mouse is over the waveforms. When unchecked, the standard arrow cursor is displayed.

The "Zoom Anchor: Mouse Cursor" option uses the arrow cursor.

The "Mouse Mode: Drag-Zoom" and "Drag-Trig" options also use the arrow cursor.

Show bookmarks on horizontal scroll bar.

When checked, bookmark markers are visible on the Trace ScrollBar. When unchecked, no bookmarks are visible on the Trace ScrollBar.

Show / Hide Trace ScrollBar Buttons

Select the buttons displayed on the horizontal Trace ScrollBar.
