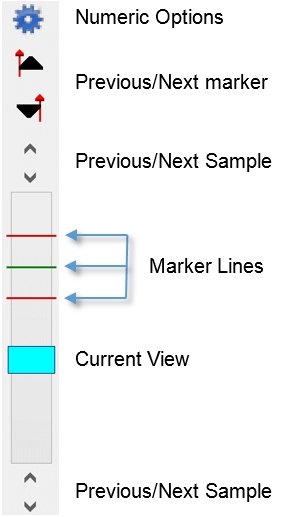

The vertical Trace ScrollBar is on the right side of the Data Area.
|
| |
|
| |
|
|
| |
|
Marker lines are displayed on the scroll area. These lines quickly scroll to specific markers or bookmarks. Click the mouse on a marker line to scroll to that location...
|
| |
|
| |
|
|
| |
|
Drag the Current View Box to scroll vertically. The vertical scale of the Current View Box is based on the total samples vs. the visible lines on screen.
|
| |
|
|
| |
|
The Options dialog box customizes the visible Trace ScrollBar buttons.
|
| |
|
Trace ScrollBar: Numeric Options (checked by default)
|
| |
When checked, displays the  Numeric Options button. The button opens the Numeric Options dialog box.
|
| |
|
Trace ScrollBar: Find Previous/Next
|
| |
When checked, displays the  Find Previous/Next buttons.
|
| |
|
Trace ScrollBar: Previous/Next Marker
|
| |
When checked, displays the  GoTo Previous/Next Marker buttons.
|
| |
|
Trace ScrollBar: Previous/Next Bookmark
|
| |
When checked, displays the  GoTo Previous/Next Bookmark buttons.
|
| |
|
Trace ScrollBar: Previous/Next Sample (checked by default)
|
| |
When checked, displays the  GoTo Previous/Next Sample buttons.
|
| |
|
