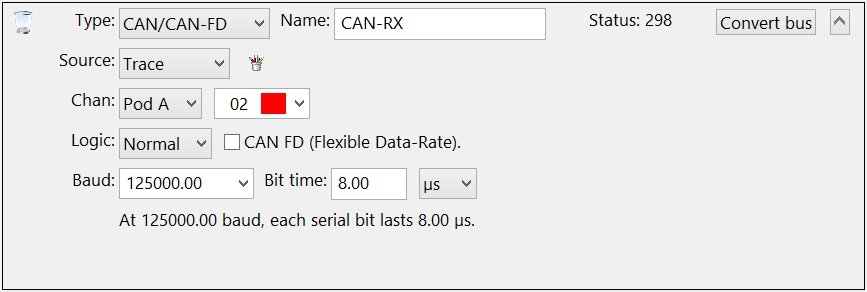

Bus Type: CAN / CAN-FD

Controller Area Network (CAN) Controller Area Network Flexible Data-Rate (CAN-FD)

Chan

Select the channel connected to the raw bus signals.

Warning: DO NOT create duplicate Channel Groups for the serial bus signals! The GoLogic7 software automatically creates a hidden channel group for each signal in the serial bus. If needed, these hidden channel groups can be used to trigger or display the raw signals in the data views.

When project files are opened, the GoLogic7 software automatically deletes channel groups which duplicate the serial bus channels. This avoid potential conflicts between the channel groups and the serial bus definitions.

Logic

Select the raw signal's logic type: Normal or Inverted.

Logic: Normal

The raw signal is inactive-high between packets.

Logic: Inverted

The raw signal is inactive-low between packets.

CAN-FD (Flexible Data-Rate).

When checked, the CAN-FD protocol is used. When unchecked, the CAN protocol is used.

Baud

Enter the baud rate. This value is the inverse of the bit time.

Bit Time

Enter the elapsed time for each bit. This value is the inverse of the baud rate.
