Serial Bus Field Colors

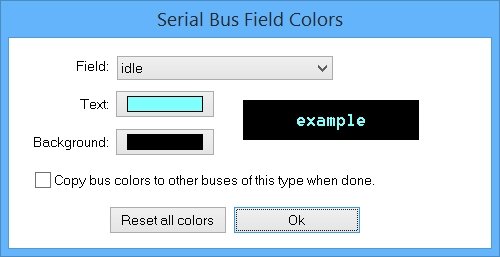

Each Serial Bus type (I2C, SPI, UART, etc.) has specific display fields. This dialog box allows you to select each bus field and assign a foreground and background color.

Field

Select the display field to edit: idle periods, data values, address values, etc.

Text Color

Select the text color for the active field.

Background Color

Select the background color for the active field.

Copy bus colors to other buses of this type when done.

When the "Okay" button is clicked, all serial bus definitions that match this bus type will use the selected colors.

Reset All Colors

Resets all fields to the default colors.
