Bus Type: JTAG

Joint Test Action Group (JTAG)

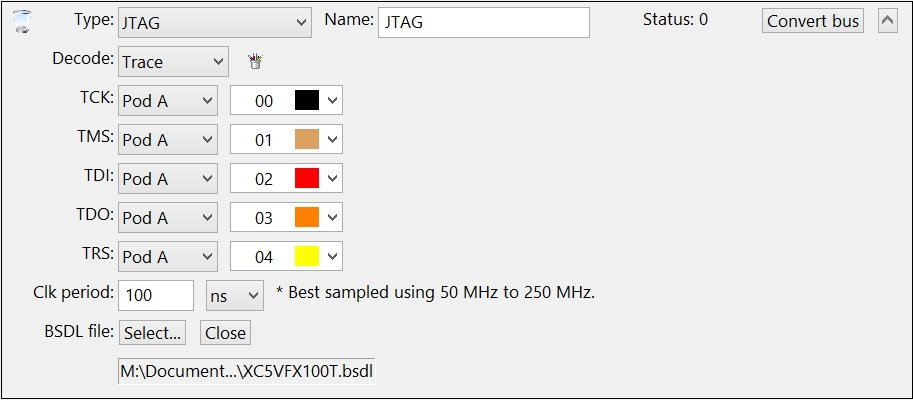

TCK / TMS / TDI / TDO / TRS

Select the channels connected to the raw bus signals.

Warning: DO NOT create duplicate Channel Groups for the serial bus signals! The GoLogic7 software automatically creates a hidden channel group for each signal in the serial bus. If needed, these hidden channel groups can be used to trigger or display the raw signals in the data views.

When project files are opened, the GoLogic7 software automatically deletes channel groups which duplicate the serial bus channels. This avoid potential conflicts between the channel groups and the serial bus definitions.

Clk period

Enter the elapsed time from rising edge to rising edge.

BSDL File

Select the Boundary Scan Definition Language file for your device. The chip maker provides the BSDL file descibing the JTAG instructions.
