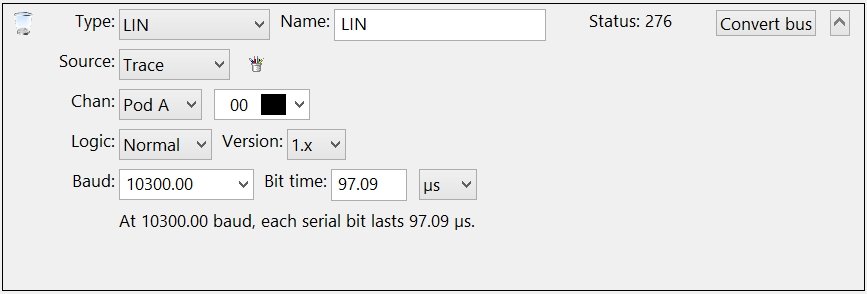

Bus Type: LIN

Local Interconnect Network (LIN)

Chan

Select the channel connected to the raw bus signal.

Warning: DO NOT create duplicate Channel Groups for the serial bus signals! The GoLogic7 software automatically creates a hidden channel group for each signal in the serial bus. If needed, these hidden channel groups can be used to trigger or display the raw signals in the data views.

When project files are opened, the GoLogic7 software automatically deletes channel groups which duplicate the serial bus channels. This avoid potential conflicts between the channel groups and the serial bus definitions.

Logic

Select the raw signal's logic type: Normal or Inverted.

Version

Select the LIN version: 1.x or 2.x

Baud

Enter the baud rate. This value is the inverse of the bit time.

Bit Time

Enter the elapsed time for each bit. This value is the inverse of the baud rate.
