Low Pin Count (LPC)
|
| |
|
|
| |
|

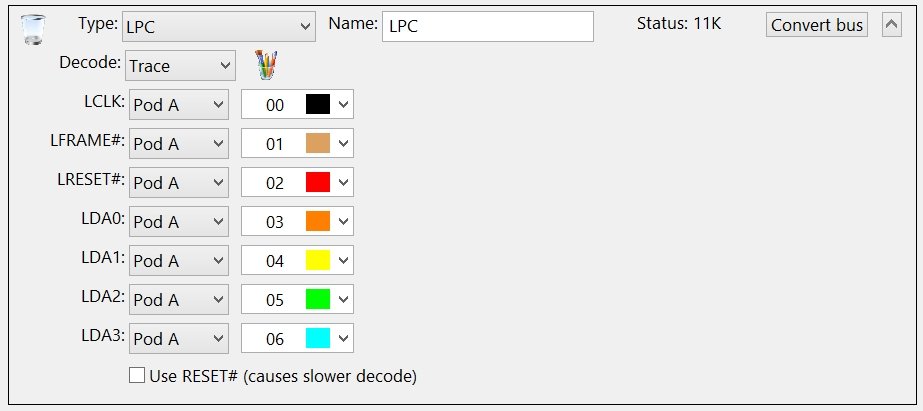

Select the channels connected to the raw bus signals.
|
| |
|
Warning: DO NOT create duplicate Channel Groups for the serial bus signals! The GoLogic7 software automatically creates a hidden channel group for each signal in the serial bus. If needed, these hidden channel groups can be used to trigger or display the raw signals in the data views.
|
| |
|
When project files are opened, the GoLogic7 software automatically deletes channel groups which duplicate the serial bus channels. This avoid potential conflicts between the channel groups and the serial bus definitions.
|
| |
|
|
| |
|
The decode is slower when LRESET# is used. If LRESET# never goes active-low, uncheck this option for faster decoding. If LRESET# goes activie-low, check this box so the decode can detect resets.
|
| |
|
