Management Data Input/Output (MDIO)
|
| |
|
|
| |
|

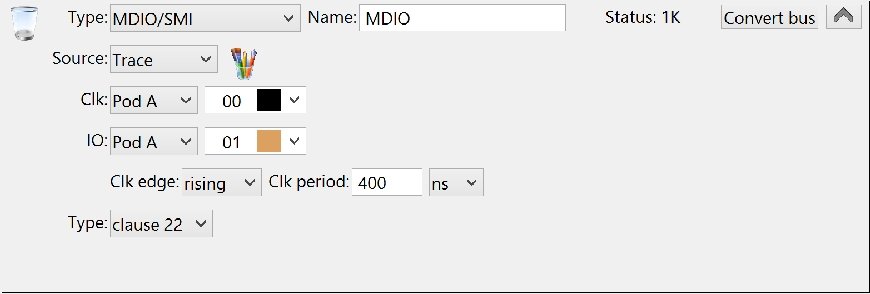

Select the channels connected to the raw bus signals.
|
| |
|
Warning: DO NOT create duplicate Channel Groups for the serial bus signals! The GoLogic7 software automatically creates a hidden channel group for each signal in the serial bus. If needed, these hidden channel groups can be used to trigger or display the raw signals in the data views.
|
| |
|
When project files are opened, the GoLogic7 software automatically deletes channel groups which duplicate the serial bus channels. This avoid potential conflicts between the channel groups and the serial bus definitions.
|
| |
|
|
| |
|
Select the clock signal edge to latch the data bits: rising, falling, or both.
|
| |
|
|
| |
|
Enter the elapsed time from rising edge to rising edge. The MDIO/SMI clock uses a nominal 400 ns period (2.5 MHz), but this can be customized if needed.
|
| |
|
|
| |
|
Select the IEEE "clause" type. Clause 22 uses the early IEEE behavior. Clause 45 uses the advanced IEEE behavior.
|
| |
|
