Bus Type: ONFI SDR

Open NAND Flash Interface (ONFI)

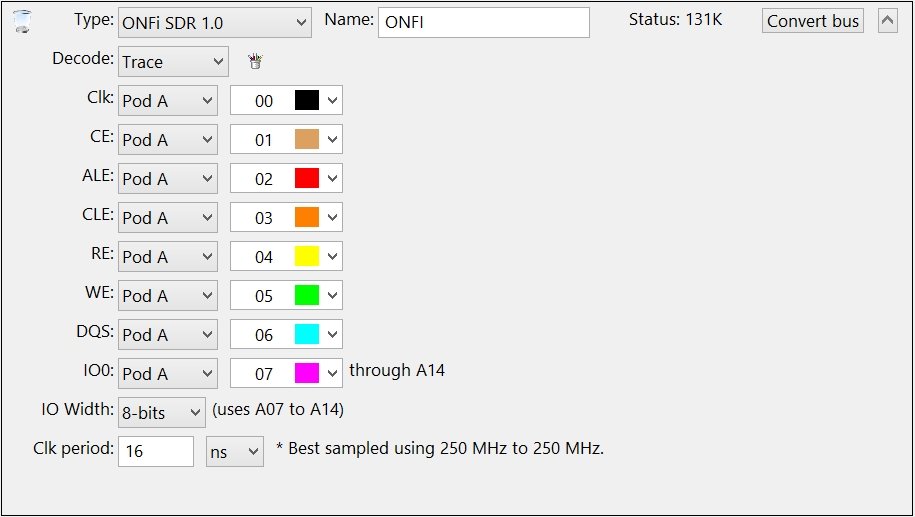

Clk, CE, ALE, CLE, RE, WE, DQS, and IO0 to IOx

Select the channels connected to the raw bus signals. IO0 is assigned to the selected start channel. The remaining IOx channels are assigned in ascending, contiguous order to fulfill the selected bus width below.

Warning: DO NOT create duplicate Channel Groups for the serial bus signals! The GoLogic7 software automatically creates a hidden channel group for each signal in the serial bus. If needed, these hidden channel groups can be used to trigger or display the raw signals in the data views.

When project files are opened, the GoLogic7 software automatically deletes channel groups which duplicate the serial bus channels. This avoid potential conflicts between the channel groups and the serial bus definitions.

IO Width

Select the number of bits in the IO bus.

Clk period

Enter the elapsed time from rising edge to rising edge.
