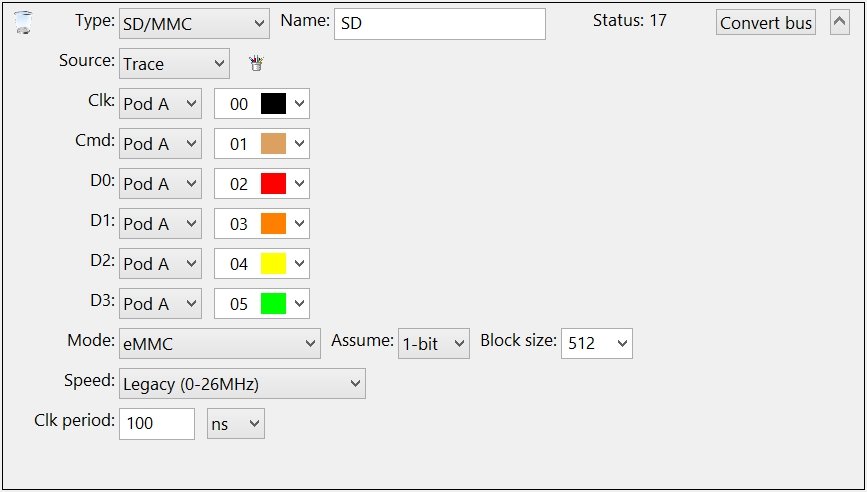

Bus Type: SDIO / MMC / eMMC

Secure Digital Input/Output (SD/SDIO) MultiMedia Card (MMC/eMMC)

Clk / Cmd / D0 - D3 (eMMC adds D4 - D7)

Select the channels connected to the raw bus signals.

Warning: DO NOT create duplicate Channel Groups for the serial bus signals! The GoLogic7 software automatically creates a hidden channel group for each signal in the serial bus. If needed, these hidden channel groups can be used to trigger or display the raw signals in the data views.

When project files are opened, the GoLogic7 software automatically deletes channel groups which duplicate the serial bus channels. This avoid potential conflicts between the channel groups and the serial bus definitions.

Mode

Select the bus mode: SD/SDIO, MMC, eMMC.

Assume (Data Width)

Select the assumed data signals active during transfers: 1-bit,  4-bit, or 8-bit.

Block size

Select the default block size.

Speed

Select the bus speed.

Clk Period

Enter the elapsed time from rising edge to rising edge.
