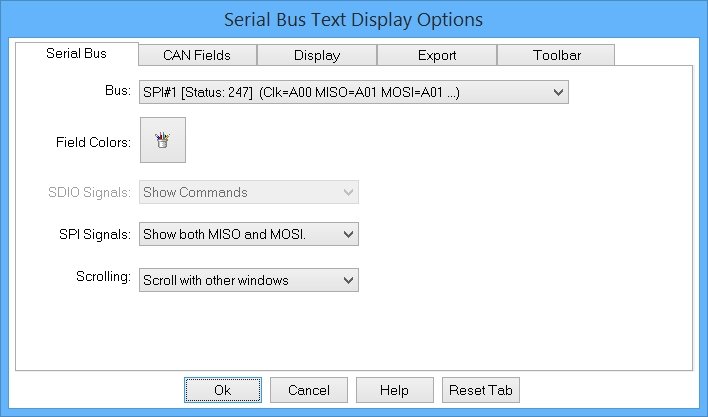

Bus
|
| |
|
Select the serial bus to display. The
Serial Tab defines the available serial buses that can be displayed.
|
| |
|
Field Colors
|
| |
|
Select the colors of the selected serial bus fields. These colors match the Serial Tab bus definitions.
|
| |
|
SDIO Type
|
| |
|
Select the SDIO / MMC / eMMC type: Commands or Data. This option is only available with an SDIO bus type is selected in the "Bus" list.
|
| |
|
Scroll Mode
|
| |
|
Customize the scroll mode behavior...
|
| |
|
Scroll Mode: Scroll with other views
|
| |
|
Scrolls the waveform with other data views. (This is the default)
|
| |
|
Scroll Mode: Scroll Independently
|
| |
|
Scrolls the waveforms separately from the other data views.
|
| |
|
