<< Trigger Tab
|
| |
|
|
| |
|

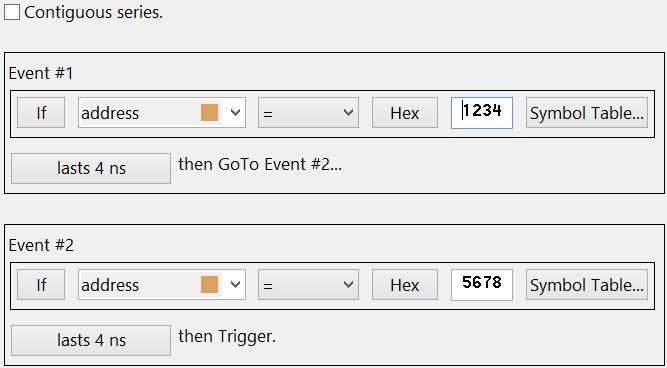

The logic analyzer triggers on a series of Trigger Events.
|
| |
 |
| |
|
The Trigger ToolBar "Series" list box defone the number of Trigger Events in the series.
|
| |
|
When checked, the "Contiguous series" option triggers only when the events occur next to each other in series.
|
| |
|
When unchecked, the "Contiguous series" option allows any number of non-matching events to occur between matching events in the series.
|
| |
|
At least two Trigger Events exists in the series.
|
| |
|
The maximim trigger series is defined by the logic analyzer model.
|
| |
|
The Appendices define each model's trigger limits.
|
| |
|
