| TRIGGER Tab |

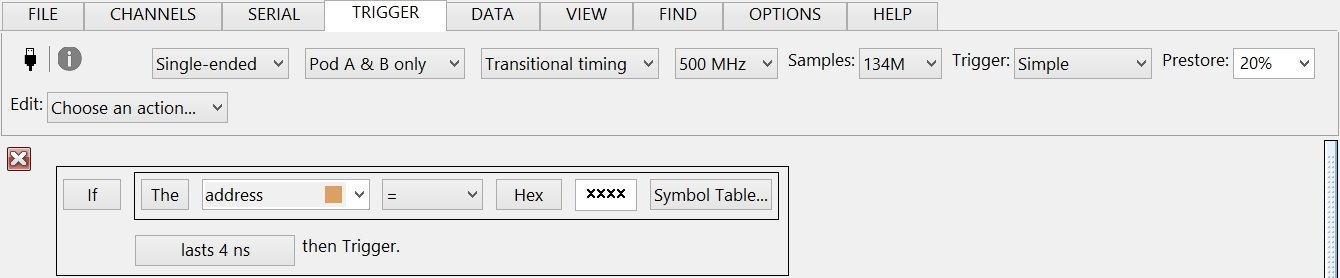

| Click the TRIGGER Tab to display the TRIGGER ToolBar and TriggerForm Edit pane. |
|
|
| The "trigger" is an event which automatically stops the logic analyzer. The trigger event which stops the logic analyzer is normally a specific error which must be diagnosed. |
| Setup ToolBar: TriggerForm |
| The Setup Toolbar's TriggerForm list box defines the active TriggerForm displayed in the TriggerForm Edit view. |
|
|
| TriggerForm: Never |
| TriggerForm: Immediate |
| TriggerForm: Simple |
| TriggerForm: Series |
| TriggerForm: TimeBetween |
| TriggerForm: Custom |
| TriggerForm: Serial Bus |
| Setup ToolBar: PreStore |
| The Setup Toolbar's PreStore edit box defines the trigger's location in the captured trace data. |
|
|
