The logic analyzer triggers when the time between two Trigger Events has specific boundaries.
|
| |
 |
| |
|
First, select the boundary type...
|
| |
 |
| |
|

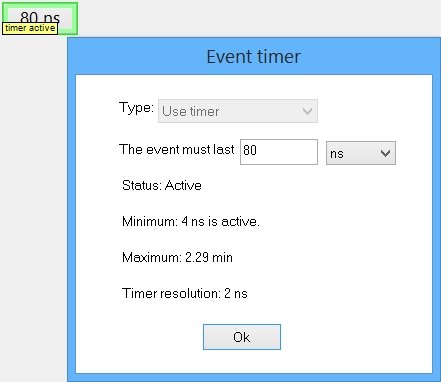

Second, click the timer button(s) to define the time boundaries...
|
| |
 |
| |
|

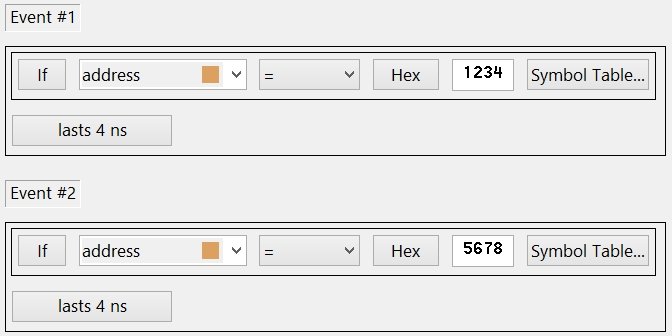

Third, define each boundary Trigger Event...
|
| |
 |
| |
|
The diagram on the view's right side shows the final time relationships...
|
| |
 |
| |
|
The Outside Limits and Inside Limits types provide a Reset Time value.
|
| |
|
The Reset Time limit is optional.
|
| |
|
The Reset Time limit defines how long to wait after the upper time boundary occurs before resetting the trigger setup.
|
| |
|
Set the Reset time limit to zero to never reset the trigger setup. The trigger sequence waits forever after the upper boundary event occurs.
|
| |
|
