| Trigger Timer / Counter |

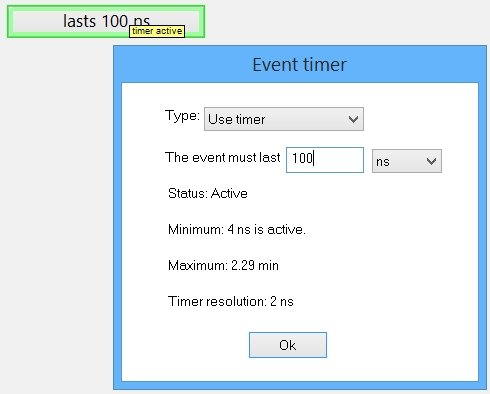

| Click the Timer / Counter button to display the Timer / Counter dialog box... |
|
|
| Type |
| Select the timer or counter type. |
| Timer / Counter Value |
| Enter the desired timer or counter value in the edit box. |
| Timers less than the minimum time are disabled. |
| Counter values less than 2 are disabled. |
| The maximum timer / counter depends in the logic analyzer model. |
| The Appendices define each model's timer / counter limits. |
