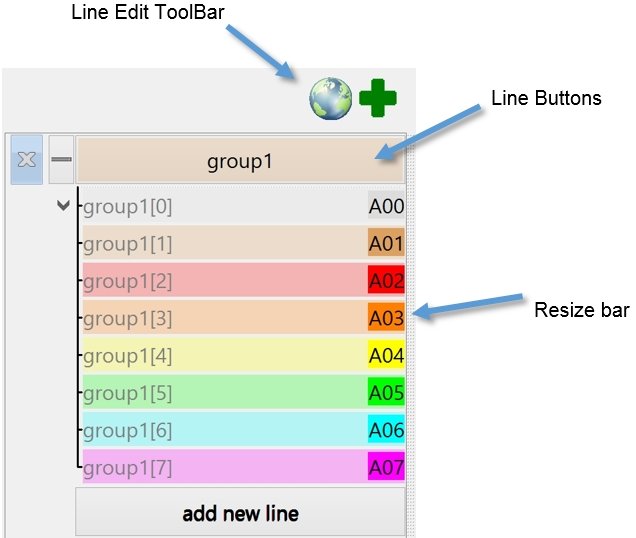

The Line Edit Area is on the left side of the WaveForm view. The Line Edit Area is used to configure each waveform line.
|
| |
|
Edit All Lines
|
|
| |
|
All: Show Channel Groups
|
| |
|
All: Show Channel Groups
|
| |
|
Displays all channel groups and serial bus definitions. |
| |
|
All: Reset Heights
|
| |
|
Reset the lines to their default heights.
|
| |
|
All: Custom Heights...
|
| |
|
Edit the default line height and sets all lines to that height.
|
| |
|
All: Collapse
|
| |
|
Expanded lines are collapsed.
|
| |
|
All: Expand
|
| |
|
All lines are expanded to show their component signals.
|
| |
|
All: Delete Lines
|
| |
|
All lines are removed.
|
| |
|
Add New Line
|
|
| |
|

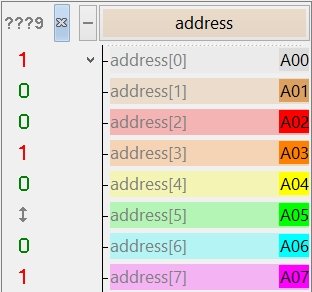

Activity Indicators
|
| |
|
When the activity indicators are enabled, the channel activity is visible on the left side of the Line Edit Area....
|
| |
 |
| |
|
|
| |
|

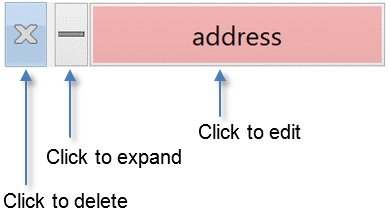

Each waveform line has the following buttons...
|
| |
 |
| |
|
If a line's edit button is blank, the line is empty and no data is displayed on the line. Otherwise, the button describes the channel group, serial bus, or scope channel displayed on the line.
|
| |
|
An blank "add new line" button is always displayed at the bottom of the Line Edit Area.
|
| |
|
Click on any line edit button to display the Setup Area.
|
| |
|
|
| |
|
The overall width of the Line Edit Area can be adjusted so that long channel group names are fit inside the buttons...
|
| |
 |
| |
|
Resize Buttons
|
| |
 |
| |
|

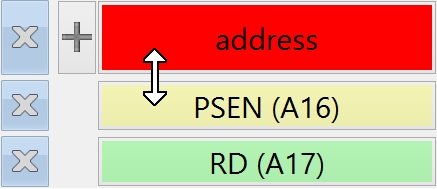

Move the mouse over a line button's bottom edge. When the mouse cursor changes to the vertical resize icon, click and hold the mouse button. Drag the button height vertically and release the mouse button at the desired height.
|
| |
|

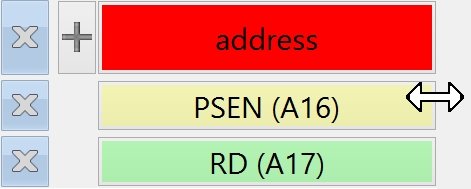

Move the mouse over the Line Edit Area resize bar. When the mouse cursor changes to the horizontal resize icon, click and hold the mouse button. Drag the area width horizontally and release the mouse button at the desired width.
|
| |
|
|
| |
|

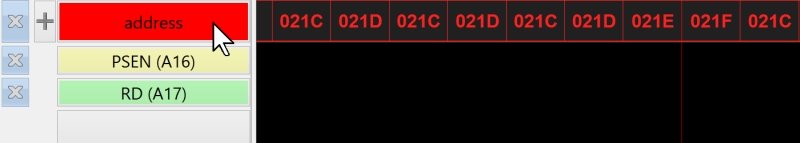

Click and hold the left mouse button over a setup button until the line is "lifted"...
|
| |
 |
| |
|

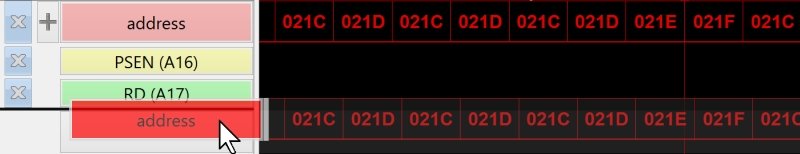

Drag the line to the new location...
|
| |
 |
| |
|

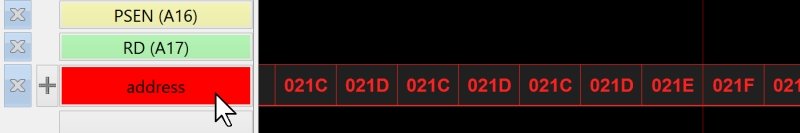

Release the mouse button to drop the line...
|
| |
 |
| |
|
