The Setup Area is displayed when any Line Edit Button is clicked.
|
| |
|
| |
|
All expanded waveform lines are automatically collapsed while the Setup Area is visible.
|
| |
|
The Expand Line buttons and Data Areas are disabled while the Setup Area is visible.
|
| |
|
When the Setup Area is closed, all automatically collapsed lines are re-expanded.
|
| |
|

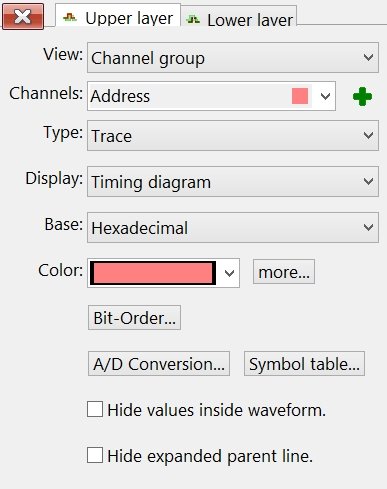

The Left side of the Setup Area configures the waveform line contents.
|
| |
|
| |
|
|
| |
Click the  close button to hide the Setup Area.
|
| |
|
View
|
| |
|
Channels
|
| |
|
Type
|
| |
|
Display
|
| |
|
Base
|
| |
|
Color
|
| |
|
Serial Bus Conversion
|
| |
|
Scope Data
|
| |
|
|
| |
|
The channel group values are not displayed inside the parent waveform when this option is checked.
|
| |
|
|
| |
|
The parent waveform is hidden if the line is expanded when this option is checked.
|
| |
|
When the View: Channel Group option is selected, the Bit-Order, A/D Conversion, and Symbol Table buttons edit the selected Channel Group's setup.
|
| |
|

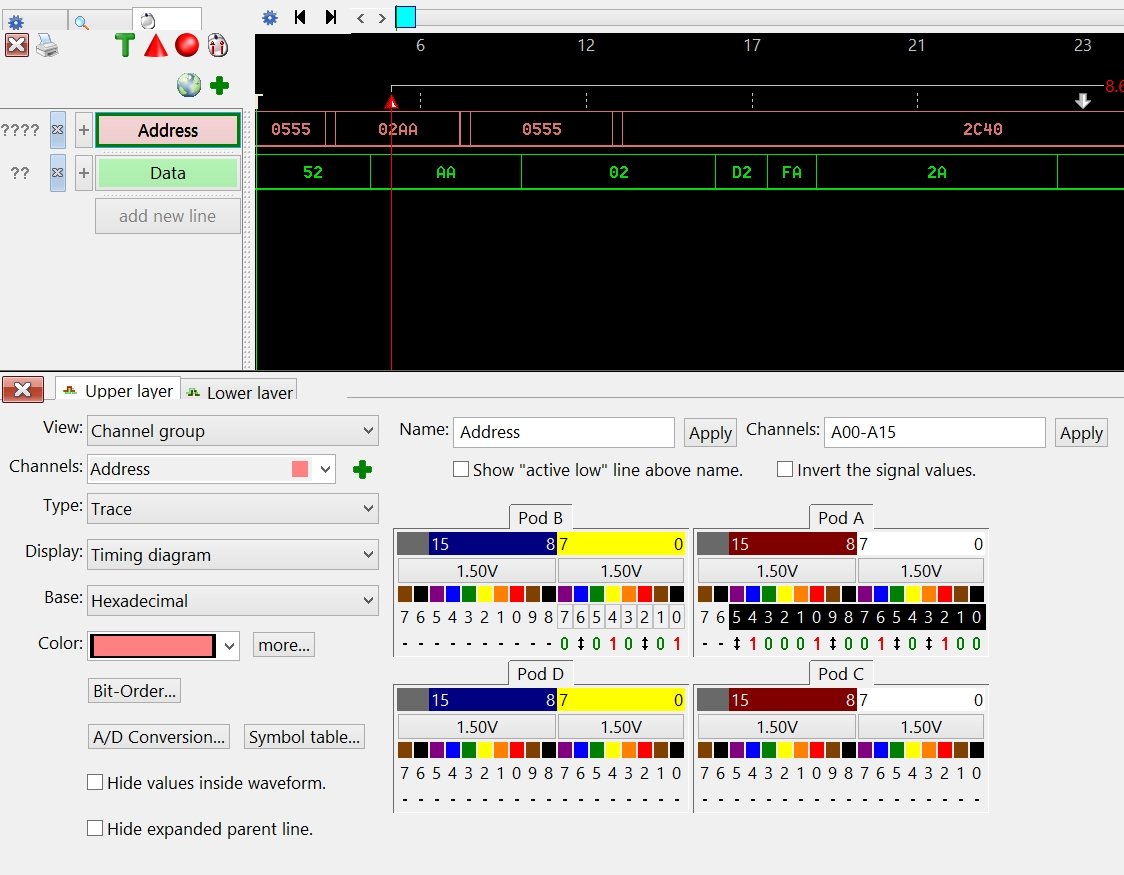

The Right side of the Setup Area displays the Common Group Edit Controls and the Pod Edit Control when the View: Channel Group option is active.
|
| |
|
The Right side of the Setup Area displays the Serial Bus Definition when the View: Serial Bus Conversion option is active.
|
| |
|
|
| |
|
| |
|

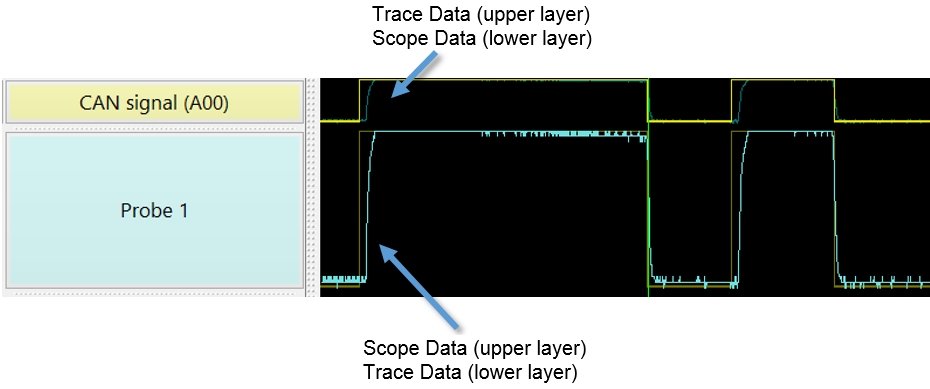

Each waveform line provides an upper and lower layer.
|
| |
|
Click the upper layer tab to edit the upper layer.
|
| |
|
Click the lower layer tab to edit the lower layer.
|
| |
|
The lower layer is disabled when the "View: Serial bus conversion" is selected.
|
| |
|
| |
|
