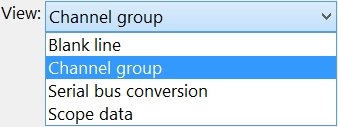

The View list defines the line's type. All other controls in the Setup Area are affected by the selected view.
|
| |
 |
| |
|
View: Blank Line
|
| |
|
An empty line is displayed on the line.
|
| |
|
View: Channel Group
|
| |
|
Logic analyzer channel data is displayed on the line.
|
| |
|
View: Serial Bus Conversion
|
| |
|
Converted serial bus data is displayed on the line. The raw signals are displayed by expanding the converted bus data.
|
| |
|
View: Scope Data
|
| |
|
Analog data captured from an external DSO is displayed on the line.
|
| |
|
