| WaveForm: SuperView Overlay (legacy GoLogicXL only) |

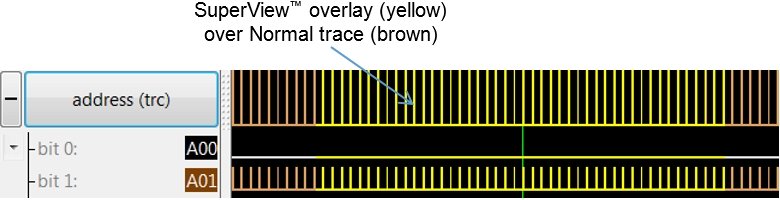

| A small window of high-resolution SuperView™ trace data is captured when Normal Timing mode is active. |
| The SuperView™ data is centered around the trigger event. |
| The SuperView™ sample depth is fixed at 16K samples, while the sample rate is fixed at 4X the main sampling rate (up to 4 GHz maximum). |
| The Toggle SuperView™ Overlay button toggles the SuperView™ data display. |
| Individual waveform lines can also be configured to display the SuperView™ data. |
|
|
| The SuperView™ data color can be adjusted via the WaveForm Options. |
