Bus Type: SENT

Single Edge Nibble Transmission (SENT)

Chan

Select the channel connected to the raw bus signal.

Warning: DO NOT create duplicate Channel Groups for the serial bus signals! The GoLogic7 software automatically creates a hidden channel group for each signal in the serial bus. If needed, these hidden channel groups can be used to trigger or display the raw signals in the data views.

When project files are opened, the GoLogic7 software automatically deletes channel groups which duplicate the serial bus channels. This avoid potential conflicts between the channel groups and the serial bus definitions.

Data Format:

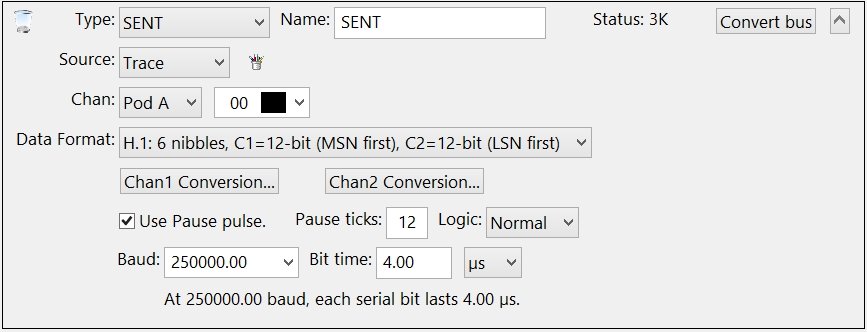

Select the SENT sensor data format...

H.1: 6 nibbles, C1=12-bit (MSN first), C2=12-bit (LSN first)       H.2: 3 nibbles, C1=12-bit (MSN first), C2=absent       H.3: 4 nibbles, C1=12-bit (MSN first), C2=absent       H.4: 6 nibbles, C1=12-bit (MSN first), C2=8-bit (MSN first)       H.5: 6 nibbles, C1=12-bit (MSN first), C2=12-bit (all zeros)       H.6: 6 nibbles, C1=14-bit (MSN first), C2=10-bit (LSN first)       H.7: 6 nibbles, C1=16-bit (MSN first), C2=8-bit (LSN first)

Chan X Conversion

Define the A/D Conversion for each channel's data.

Use Pause Pulse.

When checked, a pause pulse is expected.

Pause Ticks

Enter the baud ticks for the pause pulse.

Logic

Select the raw signal's logic type: Normal or Inverted.

Baud

Enter the baud rate. This value is the inverse of the bit time.

Bit Time

Enter the elapsed time for each bit. This value is the inverse of the baud rate.
