Install the GoLogic7 Software

#1) Download and run the Latest GoLogic7 Software installer.

#2) Connect the USB and power cables.

#3) Run the GoLogic7 software.

The power and USB cables must be connected before Windows can detect the device.

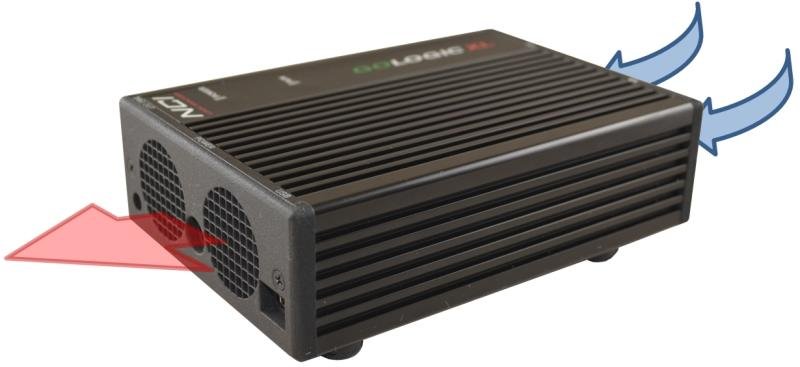

NEVER block air flow through the logic analyzer while it is connected to power!

A flashing warning icon is displayed in the Workbar area if the software cannot find the logic analyzer...

If this warning icon appears when the logic analyzer is powered and connected to the USB, then the USB device driver is not installed or Windows detected an error while loading the driver.

Verify the software's Hardware Settings use "Local Mode".

See the Install the USB Driver topic to if the GoLogic7 software does not recognize the logic analyzer device.
