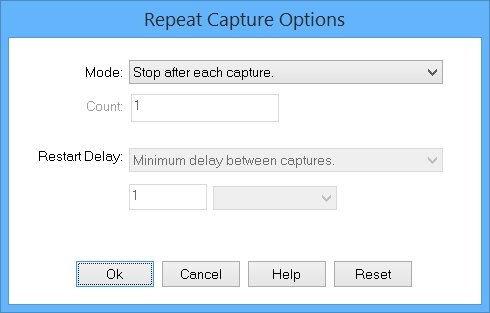

The "Repeat Run" Toolbar button configures the repeat capture features...
|
| |
|
Repeat capture mode is very powerful when combined with the "Auto-save" or "Analysis Run" features found under the System Options Toolbar button.
|
| |
|
|
| |
|
Repeat Mode: Stop After Each Capture
|
| |
|
The logic analyzer stops after each trace capture. This is the normal mode of operation.
|
| |
|
Repeat Mode: Repeat Until "Stop" is pressed.
|
| |
|
The logic analyzer automatically restarts after each trace capture until the Stop button is clicked.
|
| |
|
Repeat Mode: Repeat Until "Count" equals...
|
| |
|
Automatically restarts the logic analyzer until the specified number of trace captures are taken. The Count edit box contains the restart limit.
|
| |
|
Repeat Mode: Repeat Until "Analysis Run" finds an error.
|
| |
|
The logic analyzer automatically restarts until the Analysis Run feature finds an error.
|
| |
|
Repeat Mode: Repeat Until "Find Next" succeeds.
|
| |
|
The Find Next action is performed after each download. The logic analyzer automatically restarts if no matches are found in the new trace capture. Repeat mode stops if any matches are found. This option disables the After Download: Find Next option.
|
| |
|
Repeat Mode: Repeat Until "Find Next" fails.
|
| |
|
The Find Next action is performed after each download. The logic analyzer automatically restarts if any matches are found in the new trace capture. Repeat mode stops if no matches are found. This option disables the After Download: Find Next option.
|
| |
|
|
| |
|
Restart Delay: Minimum delay between captures
|
| |
|
The GoLogic7 software restarts quickly as possible after each trace capture is downloaded, processed, analyzed, and displayed.
|
| |
|
Note: the elapsed time between trace samples depends on how much processing is required on the new trace capture. However, some delay is always present so you can press the "Cancel" button before the logic analyzer restarts.
|
| |
|
Restart Delay: Time
|
| |
|
Enter the desired time delay between each restart.
|
| |
|
