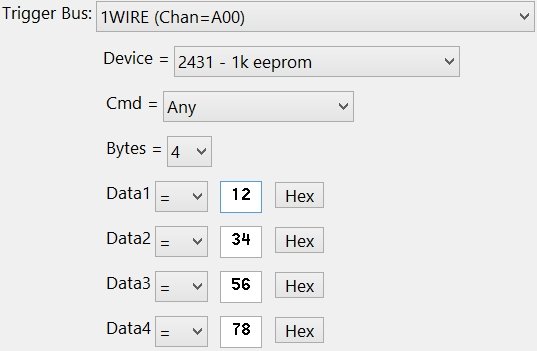

Trigger Bus: 1-Wire

Device

Select the target 1-Wire device.

Cmd

Select the target device command.

Bytes

Select the number of values in the packet.

The Appendices define each model's trigger limits.

Qualifier

Select the "=" or "!=" qualifier for each data value in the packet.

Data

Enter the value for each data byte in the packet.

The byte numbers correspond to each byte position in the packet. Therefore, no "Contiguous series" option is needed. To ignore specific data bytes, enter "xx" digits in the edit box.

Base

Click the "Hex" or "Binary" button to choose the numeric base for the data edit boxes. This option is cosmetic and has no affect on the trigger behavior.
