Trigger Bus: Raw Bit-stream

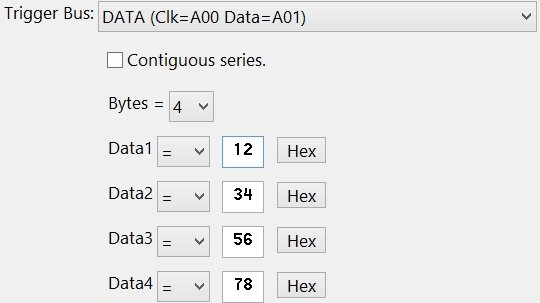

The logic analyzer triggers when the data stream matches the TriggerForm values.

Contiguous series

When checked, the "Contiguous series" option triggers only when the values in the series occur next to each other.

When unchecked, the "Contiguous series" option allows any number of non-matching values to occur between matching values in the series.

Bytes

Select the number of values in the series.

The maximum series depends on the data bit-width. As the bit-width of each data value increases, the series limit is reduced.

The Appendices define each model's trigger limits.

Qualifier

Select the "=" or "!=" qualifier for each data value in the series.

Data

Enter each data value in the series.

Base

Click the "Hex" or "Binary" button to choose the numeric base for the data edit boxes. This option is cosmetic and has no affect on the trigger behavior.
