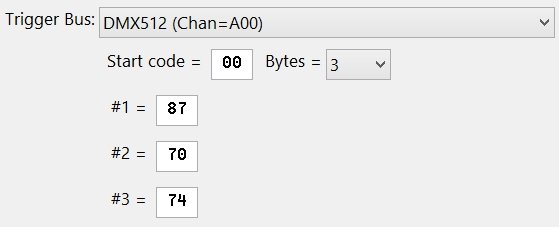

Trigger Bus: DMX512

Start Code

Enter the packet start code value.

Bytes

Select the number of values in the packet.

The Appendices define each model's trigger limits.

Data

Enter the value for each data byte in the packet.

The byte numbers correspond to each byte position in the packet. Therefore, no "Contiguous series" option is needed. To ignore specific data bytes, enter "xx" digits in the edit box.
