<< Serial Bus Trigger
|
| |
|
|
| |
|

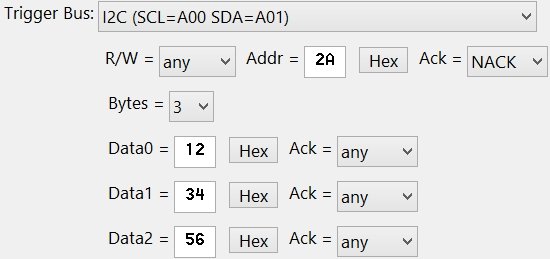

The logic analyzer triggers when the packet matches the TriggerForm values.
|
| |
 |
| |
|
R/W
|
| |
|
Select the Read / Write address bit: "any", "Read", or "Write".
|
| |
|
Addr
|
| |
|
Enter the address value.
|
| |
|
Base
|
| |
|
Click the "Hex" or "Binary" button to choose the numeric base for the address edit box. This option is cosmetic and has no affect on the trigger behavior.
|
| |
|
Ack
|
| |
|
Select the address acknowledge bit: "any", "NACK", or "ACK".
|
| |
|
Bytes
|
| |
|
Select the number of data bytes in the series.
|
| |
|
The Appendices define each model's trigger limits.
|
| |
|
Qualifier
|
| |
|
Select the "=" or "!=" qualifier for each data byte in the series.
|
| |
|
Data
|
| |
|
Enter each data value in the packet.
|
| |
|
The byte numbers correspond to each byte position in the packet. Therefore, no "Contiguous series" option is needed. To ignore specific data bytes, enter "xx" digits in the edit box.
|
| |
|
Base
|
| |
|
Click the "Hex" or "Binary" button to choose the numeric base for the data edit boxes. This option is cosmetic and has no affect on the trigger behavior.
|
| |
|
Ack
|
| |
|
Select the data byte acknowledge bit: "any", "NACK", or "ACK".
|
| |
|
