Trigger Bus: I2S

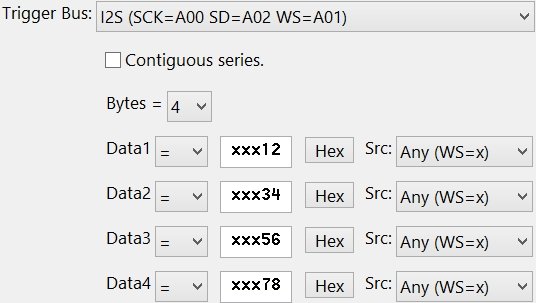

The logic analyzer triggers when the packet matches the TriggerForm values.

Contiguous series

When checked, the "Contiguous series" option triggers only when the values in the series occur next to each other.

When unchecked, the "Contiguous series" option allows any number of non-matching values to occur between matching values in the series.

Bytes

Select the number of data values in the series.

The maximum series depends on the data bit-width. As the bit-width of each data value increases, the series limit is reduced.

See the GoLogicXL specifications for details on the limits for triggers.

Qualifier

Select the "=" or "!=" qualifier for each value in the series.

Data

Enter each data value in the series.

Base

Click the "Hex" or "Binary" button to choose the numeric base for the data edit boxes. This option is cosmetic and has no affect on the trigger behavior.

Src

Select the Word Select (WS) signal for each data value: "any", "Left", or "Right".
