<< Serial Bus Trigger
|
| |
|
|
| |
|

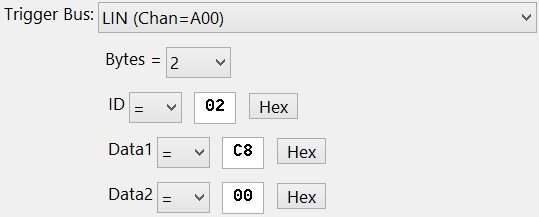

The logic analyzer triggers when the packet matches the TriggerForm values.
|
| |
 |
| |
|
ID Qualifier
|
| |
|
Select the "=" or "!=" qualifier for the ID field.
|
| |
|
ID
|
| |
|
Enter the ID field.
|
| |
|
Base
|
| |
|
Click the "Hex" or "Binary" button to choose the numeric base for the ID edit box. This option is cosmetic and has no affect on the trigger behavior.
|
| |
|
Bytes
|
| |
|
Select the number of data bytes.
|
| |
|
See the GoLogicXL specifications for details on the limits for triggers.
|
| |
|
Data Qualifiers
|
| |
|
Select the "=" or "!=" qualifier for each data byte in the series.
|
| |
|
Data
|
| |
|
Enter each data value in the packet.
|
| |
|
The byte numbers correspond to each byte position in the packet. Therefore, no "Contiguous series" option is needed. To ignore specific data bytes, enter "xx" digits in the edit box.
|
| |
|
Base
|
| |
|
Click the "Hex" or "Binary" button to choose the numeric base for the data edit boxes. This option is cosmetic and has no affect on the trigger behavior.
|
| |
|
