<< Serial Bus Trigger
|
| |
|
|
| |
|
The logic analyzer triggers when the packet matches the TriggerForm values.
|
| |
 |
| |
|

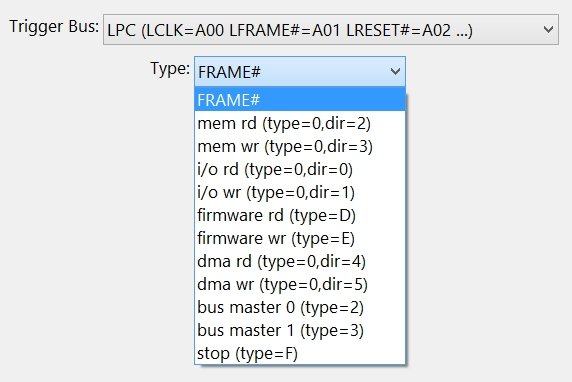

Type
|
| |
|
Select transfer type from the list. The remaining options depend on the type selected.
|
| |
|
Note: due to hardware resource limits, the LRESET# signal cannot be used to trigger in Serial Bus Trigger mode. If needed, use the "Simple" TriggerForm to trigger on LRESET#=falling.
|
| |
|
IDSel
|
| |
|
Firmware Rd/Wr requires a device ID field.
|
| |
 |
| |
|
Chan
|
| |
|
DMA Rd/Wr requires the channel index.
|
| |
 |
| |
|
Address
|
| |
|
Several transfer types requires an address value. Note: the address size is defined by the transfer type.
|
| |
 |
| |
|
Data
|
| |
|
Several transfer types have a data value field. Note: the data value size is either defined by the transfer type, or can be specified during the transfer.
|
| |
 |
| |
|
Base
|
| |
|
Click the "Hex" or "Binary" button to choose the numeric base for the address and data edit boxes. This option is cosmetic and has no affect on the trigger behavior.
|
| |
|
