The Data Area displays logic analyzer and analog scope waveforms.
|
| |
|
Click the left and right mouse button on the data area to move the active marker-pair and make time measurements.
|
| |
|
|
| |
|

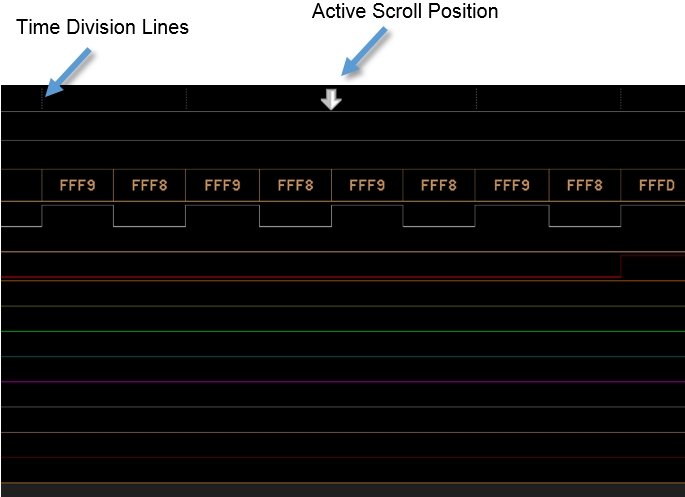

The Active Scroll Position is the horizontal center of the data area. The center of the data area aligns the WaveForm View with the other data views. By default, all data views remain aligned when scrolling the trace data.
|
| |
|
An arrow token above the data area emphasizes the Active Scroll Position.
|
| |
|
By default, the data area center is the Zoom Anchor, but this can be changed in the Options dialog box.
|
| |
|
|
| |
|
The dotted Time Division Lines are above the data area. The zoom level is expressed as a certain time per division line.
|
| |
|
The number of Time Division Lines can be changed using the Options dialog box.
|
| |
|
