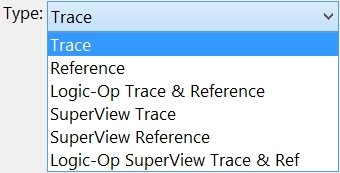

When the View: Channel Group option is selected, the Type list selects the source data type.
|
| |
 |
| |
|
Type: Trace
|
| |
|
Trace data is displayed on the line.
|
| |
|
Type: Reference
|
| |
|
Reference data is displayed on the line.
|
| |
|
Type: Logic-Op Trace & Reference
|
| |
|
Graphical comparison between Trace and Reference data.
|
| |
|
Type: SuperView Trace
|
| |
|
High-resolution SuperView Trace data.
|
| |
|
Type: SuperView Reference
|
| |
|
High-resolution SuperView Reference data.
|
| |
|
Type: Logic-Op SuperView Trace & Ref
|
| |
|
Graphical comparison between SuperView Trace and Reference data.
|
| |
|
