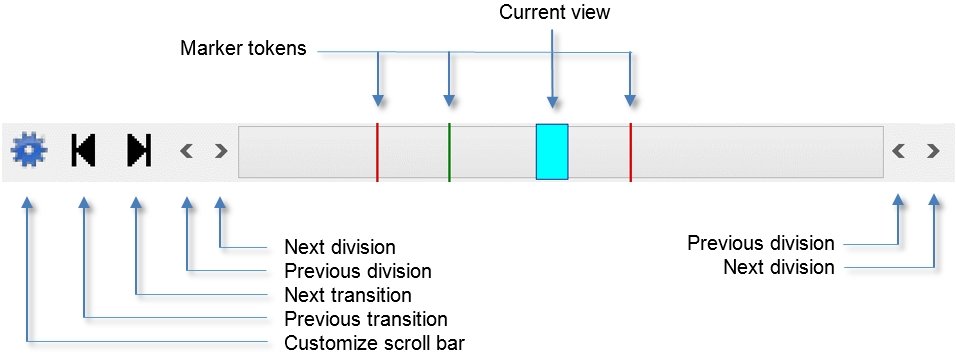

The horizontal trace scrollbar is above the Data Area.
|
| |
|
| |
|
|
| |
|
Marker lines are displayed on the scroll area. These lines quickly scroll to specific markers or bookmarks. Click the mouse on a marker line to scroll to that location...
|
| |
|
| |
|
|
| |
|
Drag the Current View Box to scroll horizontally.
|
| |
|
The Current View Box changes width as the zoom level changes. The left edge of the box represents the data area's left side. Likewise, the right edge of the box represents the data area's right side. The view box never gets too narrow to be dragged, no matter how much the data is zoomed in.
|
| |
|
|
| |
|
The Options dialog box customizes the visible Trace ScrollBar buttons.
|
| |
|
Trace ScrollBar: WaveForm Options (checked by default)
|
| |
When checked, displays the  WaveForm Options button. The button opens the WaveForm Options dialog box.
|
| |
|
Trace ScrollBar: Previous/Next Transition (checked by default)
|
| |
When checked, displays the  GoTo Previous/Next Transition buttons.
|
| |
|
Trace ScrollBar: Find Previous/Next
|
| |
When checked, displays the  Find Previous/Next buttons.
|
| |
|
Trace ScrollBar: Previous/Next Marker
|
| |
When checked, displays the  GoTo Previous/Next Marker buttons.
|
| |
|
Trace ScrollBar: Previous/Next Bookmark
|
| |
When checked, displays the  GoTo Previous/Next Bookmark buttons.
|
| |
|
Trace ScrollBar: Previous/Next Glitch
|
| |
When checked, displays the  GoTo Previous/Next Glitch buttons.
|
| |
|
Trace ScrollBar: Previous/Next Division (checked by default)
|
| |
When checked, displays the  GoTo Previous/Next Division buttons.
|
| |
|
