The Analysis Tools operate on the entire trace capture.
|
| |
|
Use the Find Tab to find individual instances of noise, pulses, or bus values.
|
| |
|
|
| |

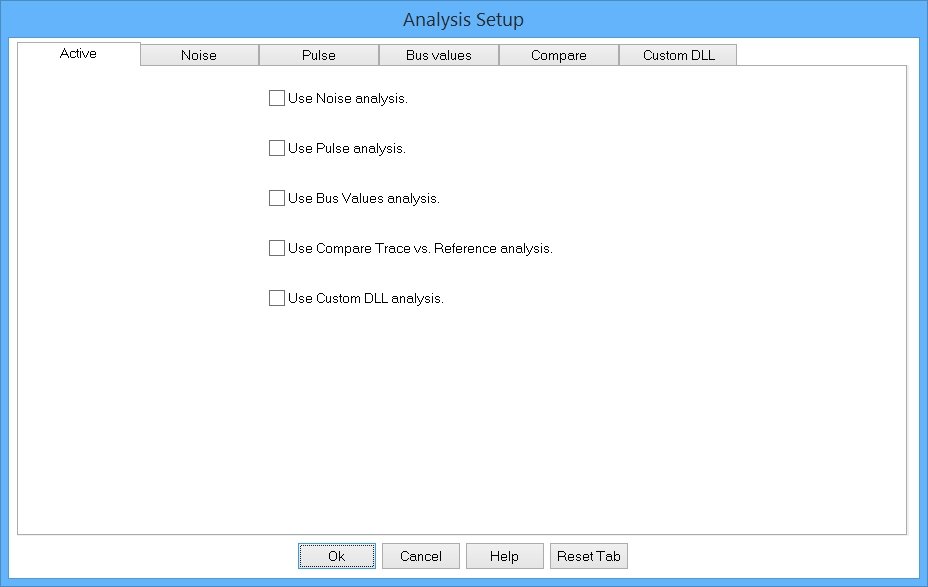

The Data Tab  button display the Analysis Tools Setup dialog box.
|
| |
|
Enable the desired analysis types in the "Active" Tab.
|
| |
|
| |
|
The unchecked analysis types are disabled. The associated setup dialog tabs are also disabled for uncheck types.
|
| |
|
The checked analysis types are enabled. Click each setup dialog tab to configure each enabled type.
|
| |
|
|
| |
The Data Tab  button executes the active analysis features.
|
| |
The Options Tab  button displays the Options: Repeat Capture dialog box. The analysis tools can run after each trace download. Repeat run mode continues until the analysis tools reports an error.
|
| |
Finally, the Options Tab  button displays the System Options: Download dialog box. The "After download" option can automatically run the analysis tools after each trace capture.
|
| |
|
|
| |
|
Noise
|
| |
|
Finds all noise in the data.
|
| |
|
Pulse
|
| |
|
Find all abnormally wide or narrow pulses.
|
| |
|
Bus Values
|
| |
|
Verifies all channel group values or a converted serial bus values.
|
| |
|
Compare
|
| |
|
Find all differences between the Trace and Reference data.
|
| |
|
Custom DLL
|
| |
|
Select an
Analysis Development Kit (ADK) function you created.
|
| |
|
