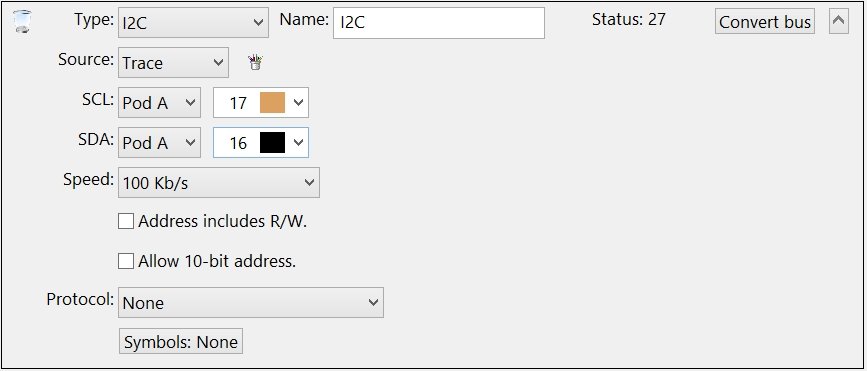

Inter-Integrated Circuit (I2C)
Improved Inter-Integrated Circuit (I3C)
|
| |
|
|
| |
|
Select the channels connected to the raw bus signals.
|
| |
|
Warning: DO NOT create duplicate Channel Groups for the serial bus signals! The GoLogic7 software automatically creates a hidden channel group for each signal in the serial bus. If needed, these hidden channel groups can be used to trigger or display the raw signals in the data views.
|
| |
|
When project files are opened, the GoLogic7 software automatically deletes channel groups which duplicate the serial bus channels. This avoid potential conflicts between the channel groups and the serial bus definitions.
|
| |
|
|
| |
|
Select the bus speed: I2C 100 Kb/s, 400 Kb/s, 3.4 Mb/s, or I3C 12.5 Mb/s SDR mode.
|
| |
|
|
| |
|
When checked, the displayed address values includes the R/W bit.
|
| |
|
|
| |
|
When checked, address values use 10-bits. When unchecked, address values have 7-bits (not counting the R/W bit). This option is not supported for I3C modes, which always use 7-bit addressing.
|
| |
|
|
| |
|
The I2C bus is a generic bus with no protocol. The Protocol List allows a Custom Protocol to be applied to the I2C data. You can also choose the "Smart Battery" or "Power Management" I2C protocols. This option is not supported for I3C modes, which always uses the I3C protocol structure.
|
| |
|
|
| |
|
Click this button to use a Symbol Table with the data values.
|
| |
|
