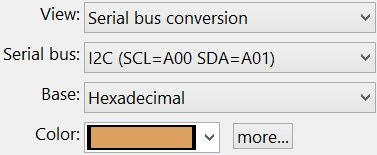

When the View: Serial Bus Conversion option is selected, converted serial bus data is displayed on the line. The setup area controls change to select a serial bus...
|
| |
 |
| |
|
The Serial Tab defines the serial buses which can be displayed on the line. Once selected, the serial bus definition can be edited in the setup area on the right...
|
| |
|
Base
|
| |
|
Select the numeric base for each bus value. If the serial bus has a protocol, this option only affects the data values. Address, command, CRC, checksum, and status fields are always displayed in hexadecimal.
|
| |
|
Color
|
| |
|
Select the line color for the timing diagram.
|
| |
|
