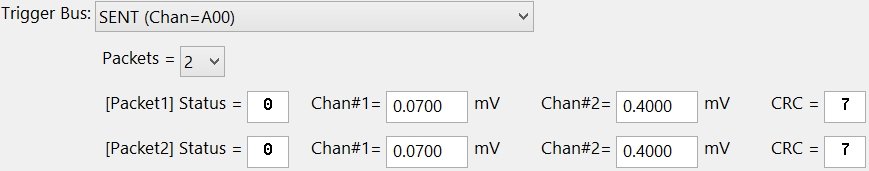

The logic analyzer triggers when the packet matches the TriggerForm values.
|
| |
 |
| |
|
Packets
|
| |
|
Select the number of packets in the series.
|
| |
|
Status
|
| |
|
Enter the 4-bit status field.
|
| |
|
Channel #X Value
|
| |
|
Enter the analog value for each channel sensor.
|
| |
|
The logic analyzer always ignores the two LSB of the digital value. This makes the trigger value less precise. The channel sensor may not output the exact analog value entered. So the logic analyzer triggers on a small "range" around the value.
|
| |
|
The A/D Conversion setup for each sensor channel is in the Serial Tab.
|
| |
|
CRC
|
| |
|
Enter the CRC field.
|
| |
|
