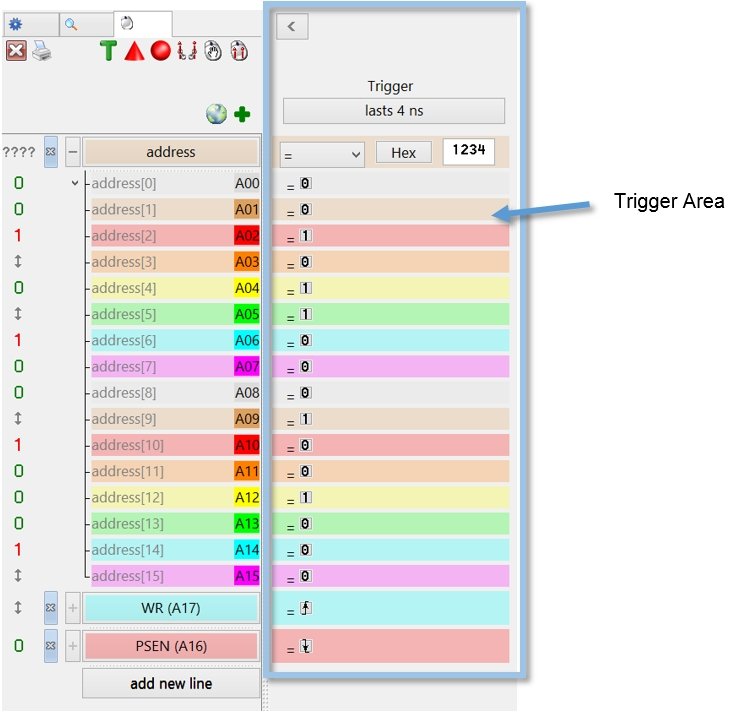

When the Simple TriggerForm is active, the WaveForm displays the trigger area next to the Line Buttons Area.
|
| |
|
The Trigger Area can be permanently hidden in the Options dialog box.
|
| |
|
|
| |
|
The Trigger Area can be temporarily hidden using the Show / Hide button at the top of the area...
|
| |
 |
| |
|
|
| |
|
The Simple TriggerForm Timer / Counter is defined with the timer button at the top of the area...
|
| |
 |
| |
|
|
| |
|
The WaveForm trigger edit rules are identical to the Trigger Tab.
|
| |
|
Unlike the Trigger Tab, the WaveForm view allows channel groups to be expanded into the component signals. Individual buttons are provided for each signal in the channel group...
|
| |
 |
| |
|
Notice that Value Triggers can only be selected for groups containing two or more channels. This includes the signals inside an expanded group.
|
| |
|
Edge Triggers can only be used on single-channel groups.
|
| |
|

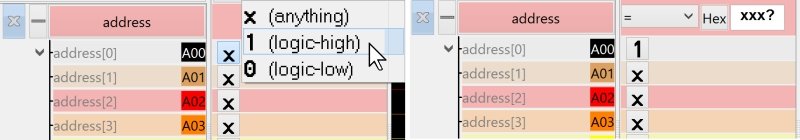

In the above example, the Ambiguous Trigger Value "?" digit is displayed because one or more "anything" characters are used inside a hex digit.
|
| |
|
